(5-14) - CASE LUBRICATED TRACK CHAIN, EACH MASTER LINK HAS ONE BOLT HOLE

Запчасти Case 550G (5-14) - CASE LUBRICATED TRACK CHAIN, EACH MASTER LINK HAS ONE BOLT HOLE (04) - UNDERCARRIAGE

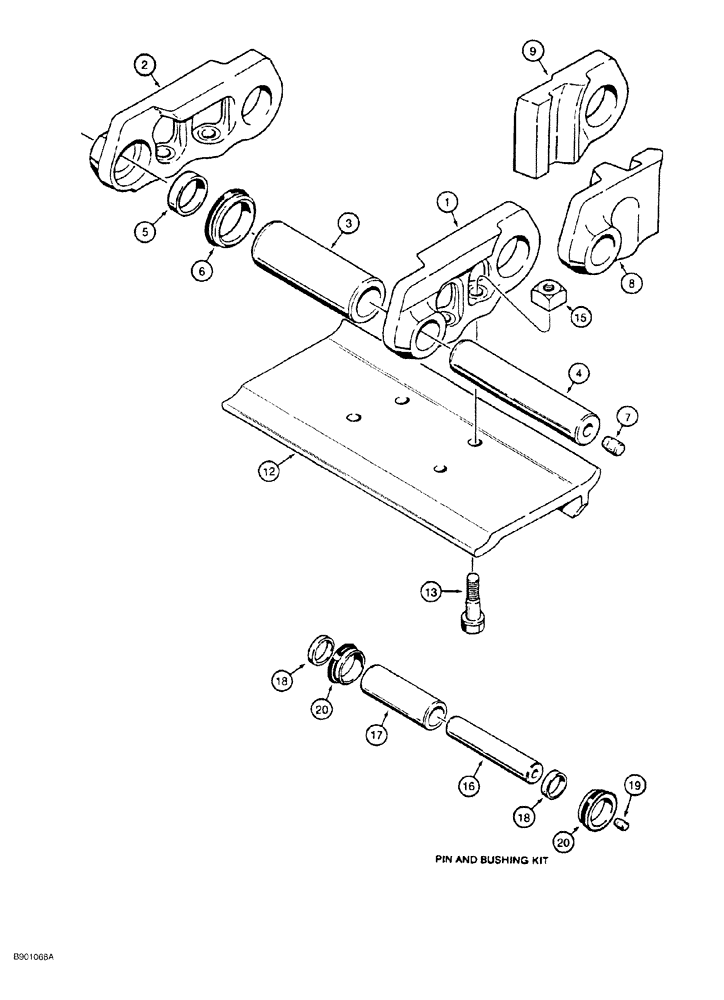

Схема запчастей Case 550G - (5-14) - CASE LUBRICATED TRACK CHAIN, EACH MASTER LINK HAS ONE BOLT HOLE (04) - UNDERCARRIAGE
15
18
6
2
8
13
1
4
17
3
12
7
5
20
20
9
16
18
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R57372

CHAIN (CE)

37 unit, Includes: Ref. 1 - 11

2шт.

1

R57404

CHAIN LINK

Track, RH

36шт.

Part of Chain Assy. Kit P/N 248109A1

1шт.

2

R57403

CHAIN LINK

Track, LH

36шт.

Part of Chain Assy. Kit P/N 248109A1

1шт.

3

R57369

BUSHING

track pin, 47 mm (1-7/8") O.D.

37шт.

Part of Chain Assy. Kit P/N 248109A1

1шт.

4

R57368

PIN

track

37шт.

Part of Chain Assy. Kit P/N 248109A1

1шт.

5

R57377

RING

SPACER seal

74шт.

Part of Chain Assy. Kit P/N 248109A1

1шт.

6

R57370

SEAL

track pin

74шт.

Part of Chain Assy. Kit P/N 248109A1

1шт.

7

R54334

PLUG,16mm

track pin

37шт.

Part of Chain Assy. Kit P/N 248109A1

1шт.

R57406

CHAIN LINK

ASSY. master, right-hand, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

LINK track, master, right-hand, fits over track pin on outside of regular track link

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, right-hand, fits over bushing on inside of regular track link

1шт.

R57405

CHAIN LINK

ASSY. master, left-hand, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

LINK track, master, left-hand, fits over track pin on outside of regular track link, not illustrated

1шт.

11

NSS

NOT SOLD SEPARAT

LINK track, master, left-hand, fits over bushing on inside of regular track link, not illustrated

1шт.

12

R57417

PLATE

SHOE track, 406 mm (16"), if used

74шт.

12

R57876

TRACK SHOE

SHOE track, 508 mm (20"), if used

74шт.

12

R57418

TRACK SHOE

711 mm (28"), if used

74шт.

13

R57374

BOLT

hex, special, 9/16" NF x 1-25/32"

296шт.

15

R57375

SQUARE NUT

square, special, 9/16" NF, not used on master link bolts

288шт.

248109A1

KIT chain assy., Includes: Ref. 1 - 7 for one track link assy. and 7-52230 instruction sheet

1шт.

R57415

PIN

KIT bushing, includes instruction sheet, services complete track chain for both sides of tractor, Includes: Ref. 16 - 21

1шт.

16

R57368

PIN

track, pin and bushing kit

74шт.

17

R57369

BUSHING

track pin, 47 mm (1-7/8") O.D., pin and bushing kit

74шт.

18

R57377

RING

SPACER seal, pin and bushing kit

148шт.

19

R54334

PLUG,16mm

track pin, pin and bushing kit

74шт.

20

R57370

SEAL

track pin, pin and bushing kit

148шт.

21

345-140

SEALANT

ADHESIVE rubber, Scotch Grip No. 847, 1 pint can, for link pin bores, pin and bushing kit, not illustrated

1шт.
