(2-15) - TURBOCHARGER ASSY, 4T-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case 550H (2-15) - TURBOCHARGER ASSY, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

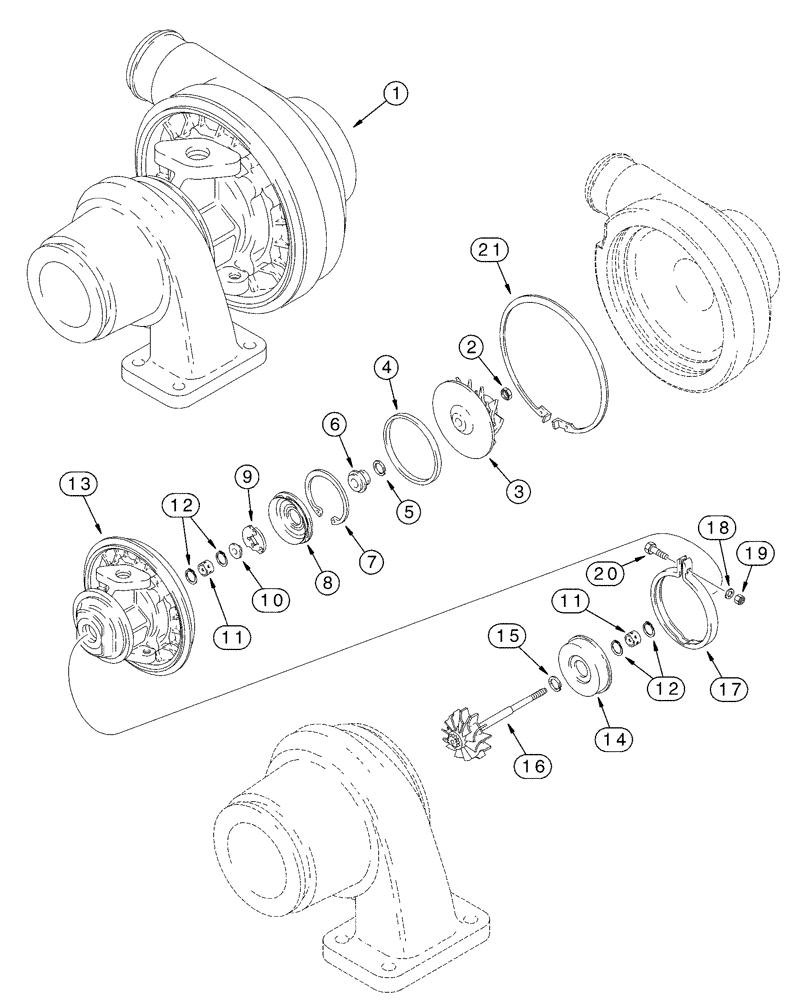

Схема запчастей Case 550H - (2-15) - TURBOCHARGER ASSY, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
13
1
12
10
4
5
3
11
11
16
14
18
2
9
21
8
12
20
7
6
19
17
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

J802908

TURBOCHARGER

Kit, Consists Of : J519807, J709861, 2- 24

1шт.

JR802908

REMAN-TURBOCHARGER

1шт.

JC537886

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J580234

HOUSING ASSY.

Center Consists Of : 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

15a

NSS

NOT SOLD SEPARAT

Seal Not Illustrated

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J531670

CLIP

Clamp

1шт.

18

J535971

WASHER

1шт.

19

J531582

NUT

M6

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

Bolt M6 x 1

1шт.

21

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

Turbocharger Overhaul Consists Of : 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19, 20

1шт.
