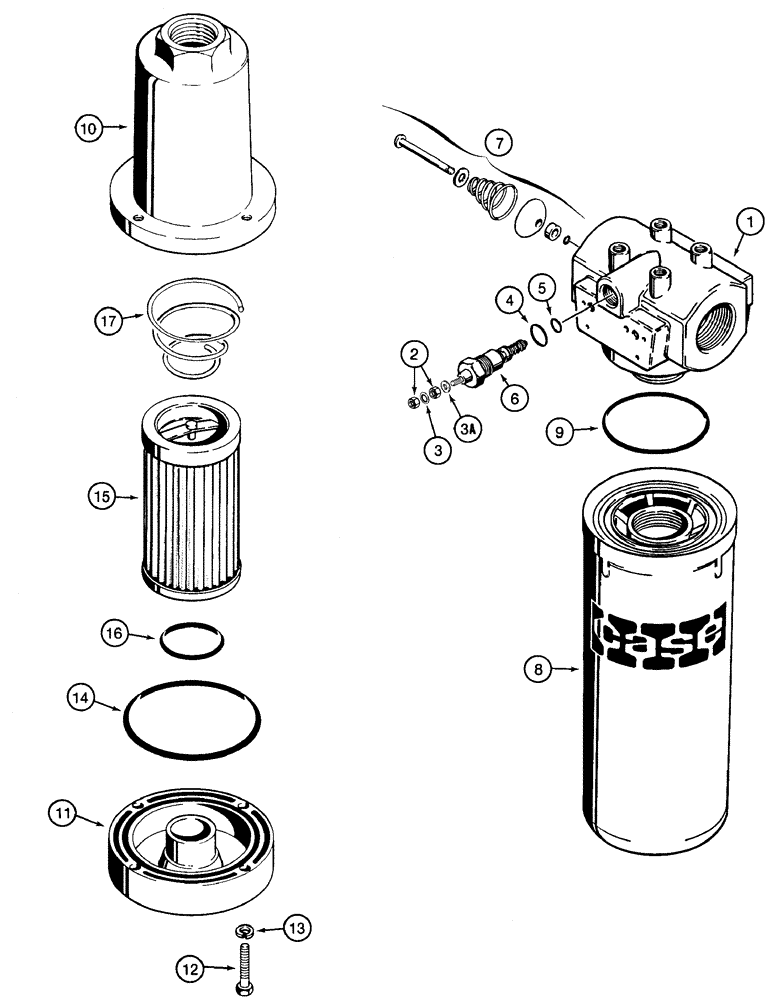

Запчасти Case 550H (6-16) - FILTER ASSY, OIL, TRANSMISSION OIL FILTER, HYDRAULIC OIL FILTER (06) - POWER TRAIN

R48993

FILTER

Consists Of : 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

N7929

INDICATOR

Consists Of : 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

3a

NSS

NOT SOLD SEPARAT

Washer

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Indicator

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, By-Pass

1шт.

1346028C1

HYDRAULIC OIL FILTER

Consists Of : 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Element

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

1шт.

D35144

FILTER

FILTER, OIL Consists Of : 10 - 17, transmission suction line

1шт.

10

D37033

HOUSING

transmission suction line filter

1шт.

11

D37034

HEAD

transmission suction line filter

1шт.

12

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Transmission suction line filter

4шт.

13

492-11025

LOCK WASHER,1/4"

Transmission Suction Line Filter

4шт.

14

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

transmission suction line filter

1шт.

15

D37035

FILTER, ELEMENT

ELEMENT, FILTER includes: 16, transmission suction line filter

1шт.

16

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Transmission suction line filter

1шт.

17

D37036

SPRING

transmission suction line filter

1шт.
