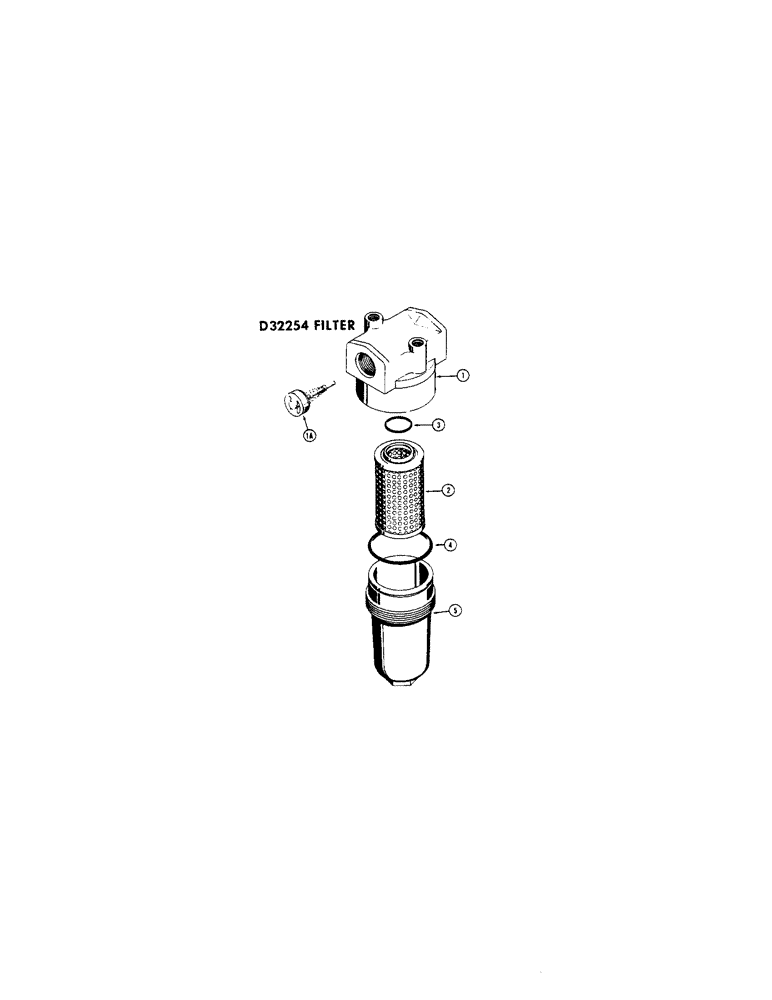

Запчасти Case 450 (224[1]) - D32254 HYDRAULIC FILTER (07) - HYDRAULIC SYSTEM

D32254

FILTER ASSY

- hydraulic, Marvel no. 33452 (8-3/8" high) When stock is exhausted, use D43567 filter for service, Includes: Ref. 1 - 5

1шт.

1

D31874

HEAD

- filter, Includes: Ref. 1A

1шт.

1a

L13790

LOCK VALVE

VALVE - bypass, oil (25 P.S.I)

1шт.

D32212

FILTER, ELEMENT

KIT - filter element, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

3

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O"ring, element

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O"ring, cap

1шт.

5

R20645

HOUSING

- filter

1шт.
