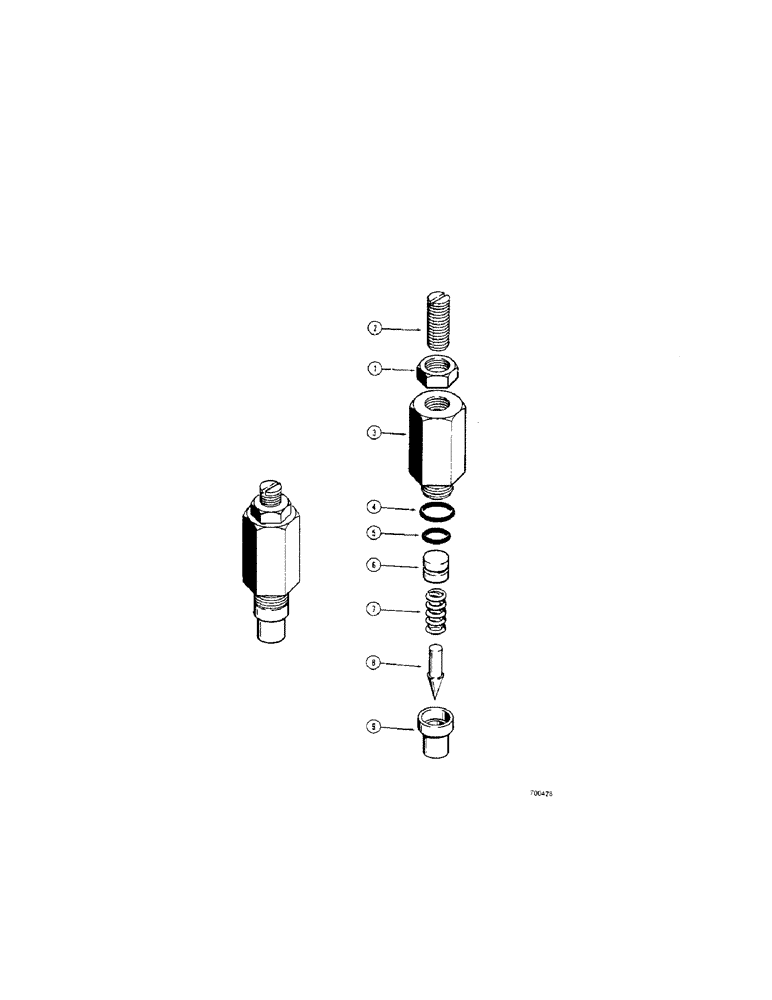

Запчасти Case 310G (186[1]) - D31458 SECONDARY RELIEF VALVE (LOADER MODELS ONLY) (07) - HYDRAULIC SYSTEM

D31458

VALVE - secondary relief, Includes: Ref. 1 - 9

1шт.

1

25-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam (1/4"-28 NF)

1шт.

2

176-395

SCREW - set, slotted (1/4" - 28 NF x 3/4")

1шт.

3

D26900

CAP - relief valve

1шт.

5

D26899

O-RING,0.145" ID

SEAL - "O" ring, follower

1шт.

6

D26897

FOLLOWER - spring

1шт.

D37365

KIT

- spring and poppet, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET

1шт.

9

D31986

SEAT

- poppet

1шт.

4

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal, cap

1шт.
