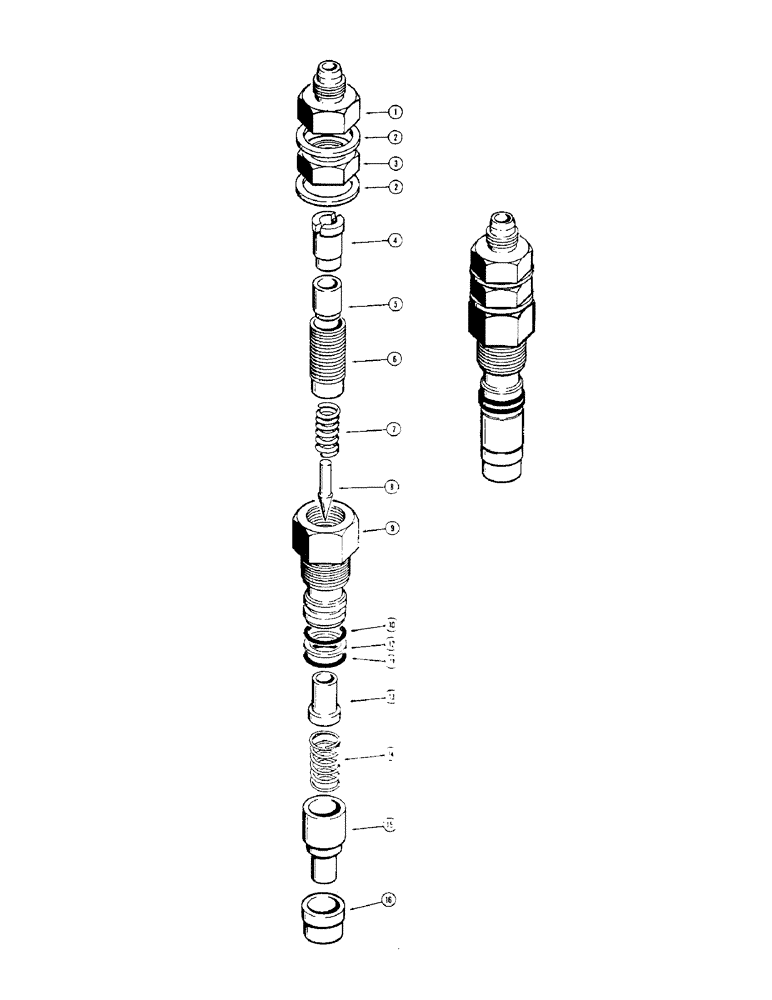

Запчасти Case 310G (186) - MAIN RELIEF VALVE, (DOZER BACKHOE MODELS ONLY) (07) - HYDRAULIC SYSTEM

1

D27260

FITTING

- pilot

1шт.

2

D27259

SEAL

WASHER - special

2шт.

3

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam

1шт.

4

D27262

RETAINER - piston

1шт.

5

D27261

PISTON

- relief valve

1шт.

6

D27258

ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"

- adjusting

1шт.

7

D30743

PISTON

SPRING - pilot

1шт.

8

D26267

PLUNGER

- relief valve

1шт.

9

D27257

CAP - relief valve

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

11

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, large

1шт.

12

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup

1шт.

13

D26266

SEAT

- pilot

1шт.

14

D26261

VALVE SPRING

SPRING - relief valve

1шт.

15

A16888

VALVE POPPET

POPPET - relief valve

1шт.

16

D26259

SEAT

- popet

1шт.
