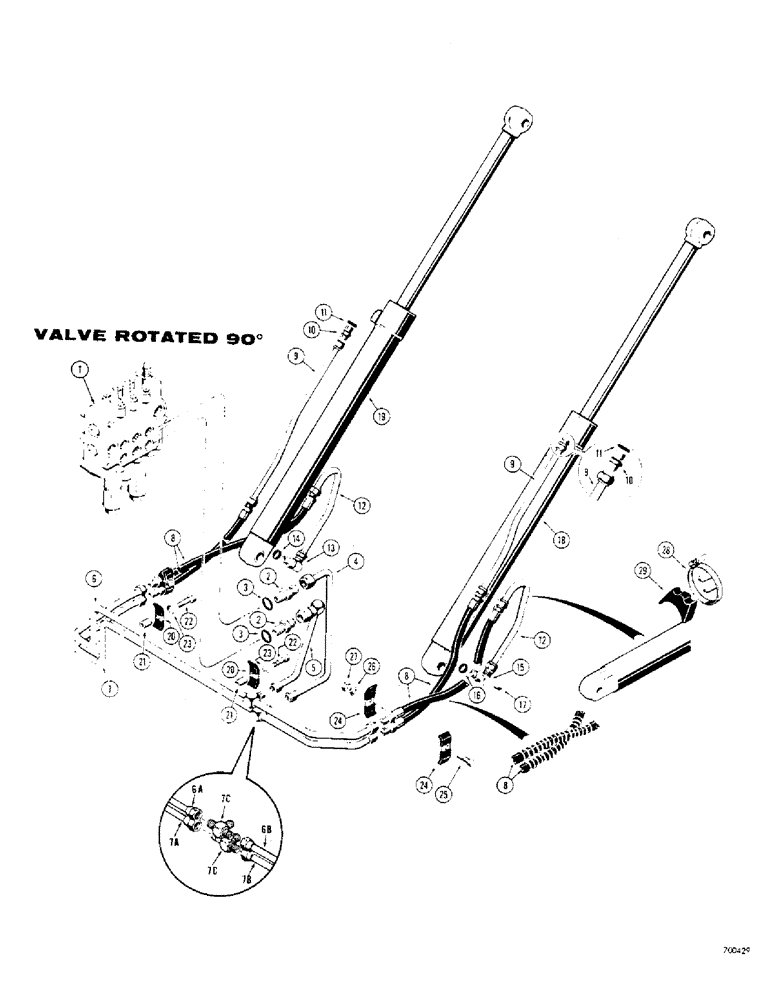

Запчасти Case 310G (200) - LOADER HYDRAULICS (LIFT CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker series VDP 12) See figure 172 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

X38155

SPRING

- upper control valve port to lower tee

1шт.

5

D38135

TUBE - lower control valve port to upper tee

1шт.

6

D38142

TUBE

- crossover, upper

1шт.

6a

D33350

TUBE - crossover, upper L.H. (When stock is exhausted, use D38142 tube for service)

1шт.

6b

D33350

TUBE - crossover, upper R.H. (When stock is exhausted, use D38142 tube for service)

1шт.

7

D36848

TUBE

- crossover, lower

1шт.

7a

D33983

TUBE - crossover, lower L.H. (When stock is exhausted, use D36848 tube for service)

1шт.

7b

D33350

TUBE - crossover, lower R.H. (When stock is exhausted, use D36848 for service)

1шт.

7c

218-595

TEE,7/8"-14, 37 Degree

- male (5/8" JIC)

2шт.

8

D33354

HOSE

- control valve to lift cylinder (18" long)

4шт.

9

D33326

TUBE - control valve to lift cylinder rod end

2шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight, Includes: Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

D33320

TUBE

- control valve to lift cylinder closed end

2шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

R19576

FITTING

ELBOW - special, 90 degrees, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head

1шт.

18

REF

INSTRUCTION

CYLINDER - lift, R.H. (See figure 258 for cylinders)

1шт.

19

REF

INSTRUCTION

CYLINDER - lift, L.H. (See figure 258 for cylinders)

1шт.

20

D33316

CLAMP

PLATE - clamp, tube

2шт.

21

D33552

BUSHING

SPACER - clamp

2шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

23

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

24

D33316

CLAMP

PLATE - clamp, tube

4шт.

25

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

26

195-21

WASHER,5/16"

- flat () 5/16"

2шт.

27

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

2шт.

28

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube, adjustable

2шт.

29

D39502

SADDLE

- rubber

2шт.
