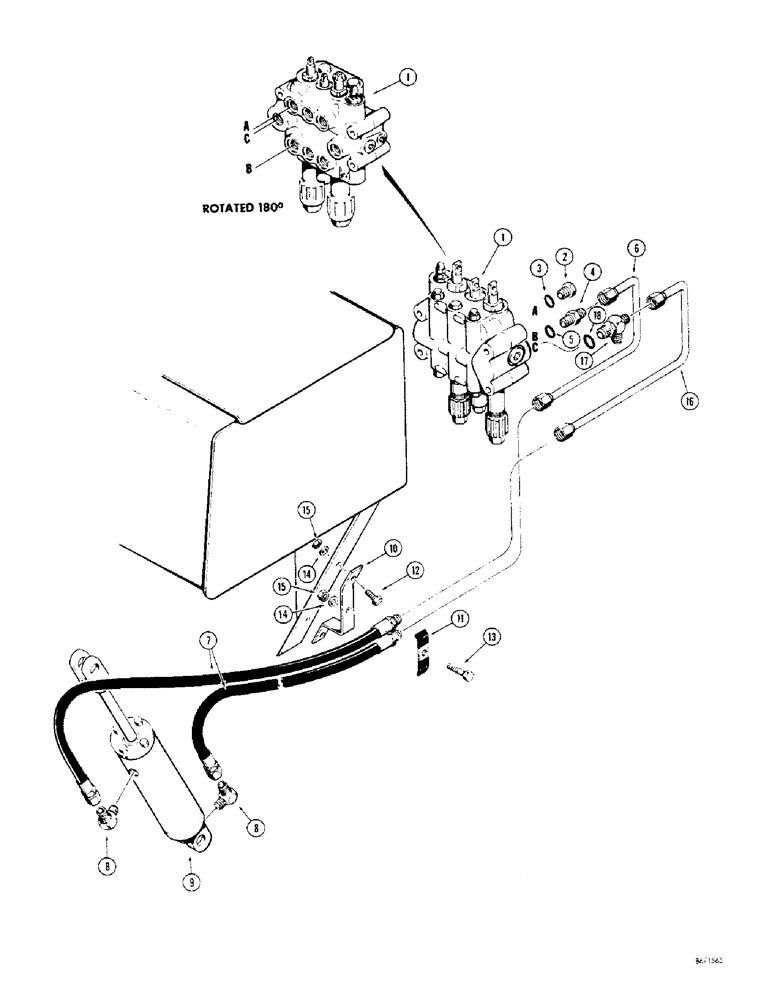

Запчасти Case 310G (250) - THREE POINT HITCH HYDRAULICS, (MODELS W/OUT DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 12) see figures 172 thru 178 for proper valve

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 3 Hex Hd, 7/8"-14 ORB

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

D36890

TUBE - lower control valve port to hydraulic cylinder - closed end

1шт.

7

D21955

HOSE - control valve to hydraulic cylinder (28" long)

2шт.

8

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees

2шт.

9

A11231

CYLINDER

- hyd., three point hitch (Parts list figure 276)

1шт.

10

D38331

BRACKET - mounting, hose clamp

1шт.

11

D33316

CLAMP

PLATE - clamp, hose

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

13

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

14

195-21

WASHER,5/16"

- flat () 5/16"

3шт.

15

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

3шт.

16

D33934

TUBE - hydraulic cylinder - rod end to control valve - return port

1шт.

17

D33933

X

TEE - adjustable, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
