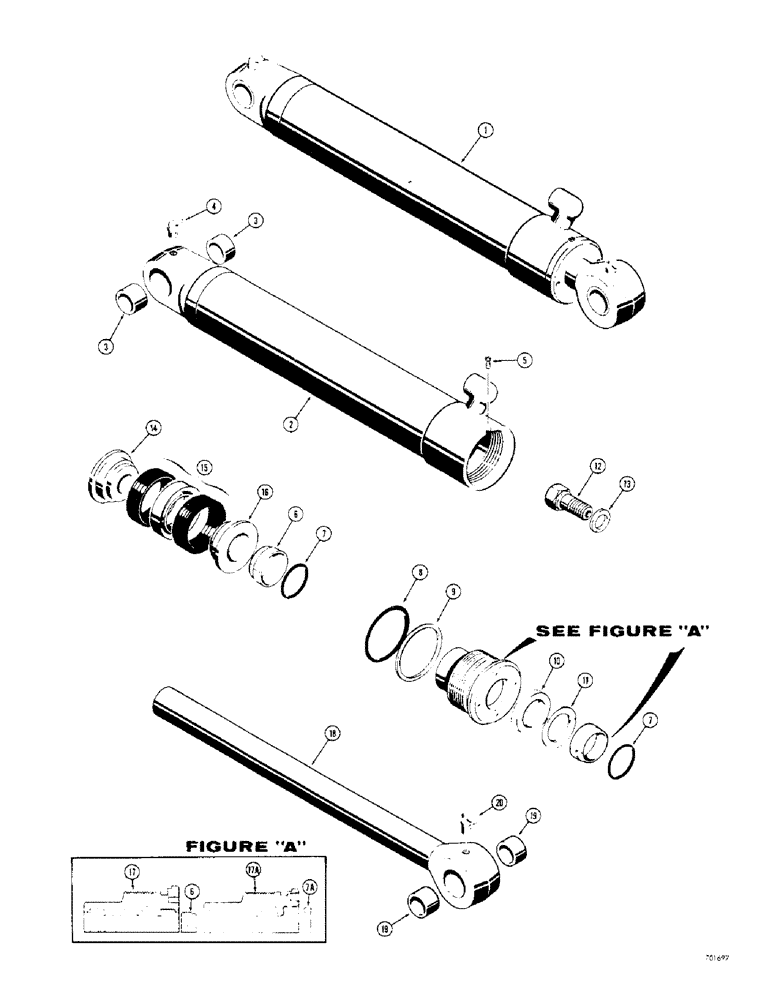

Запчасти Case 310G (258) - LOADER LIFT CYLINDERS, USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D33121

CYLINDER

- lift, R.H. (3" I.D. x 31" stroke), Includes: Ref. 2 - 20

1шт.

These cylinders use D37355 and D42872 packing kits. See figure 282 for kit components.

1шт.

1

D33122

CYLINDER

- lift, L.H. (3" I.D. x 31" stroke), Includes: Ref. 2 - 20

1шт.

These cylinders use D37355 and D42872 packing kits. See figure 282 for kit components.

1шт.

2

D33272

TUBE

- cylinder, R.H., Includes: Ref. 3

1шт.

2

D33273

TUBE

- cylinder, L.H., Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- R.H. and L.H. tubes

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D28049

RING

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D28499

RING

- backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

14

D28896

PISTON

- split, bolt end

1шт.

15

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

16

D28897

PISTON

- split, rod end

1шт.

17

D45068

GLAND

- packing

1шт.

18

D33267

ROD

- piston (1-3/4" dia.), Includes: Ref. 19

1шт.

19

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod eye

2шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

1

G32573

CYLINDER ASSY.

CYLINDER - lift, R.H. (3" I.D. x 31" stroke), uses press in outer rod wiper, Includes: Ref. 2 - 20

1шт.

These cylinders use G32289 cylinder packing kits. For kit components, see figure 282.

1шт.

1

G32574

CYLINDER

- lift, L.H. (3" I.D. x 31" stroke), uses press in outer rod wiper, Includes: Ref. 2 - 20

1шт.

These cylinders use G32289 cylinder packing kits. For kit components, see figure 282.

1шт.

2

D33272

TUBE

- cylinder, R.H., uses press in outer rod wiper, Includes: Ref. 3

1шт.

2

D33273

TUBE

- cylinder, L.H., uses press in outer rod wiper, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tubes (R.H. & L.H.), uses press in outer rod wiper

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree (1/8" NPT), uses press in outer rod wiper

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

6

D27432

SHIM

- rod, inner, uses press in outer wiper

1шт.

7

NSS

NOT SOLD SEPARAT

NOT REQUIRED, uses press in outer rod wiper

1шт.

7a

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, uses press

1шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland, uses press in outer rod wiper

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, uses press in outer rod wiper

1шт.

10

D36970

CUP

SEAL - rod, uses press in outer wiper

1шт.

11

NSS

NOT SOLD SEPARAT

NOT REQUIRED, uses press in outer rod wiper

1шт.

12

D32861

BOLT

- special, uses press in outer rod wiper

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, uses press in outer rod wiper

1шт.

14

D28896

PISTON

G - split, bolt end, uses press in outer rod wiper

1шт.

15

D28374

PACKAGE,SERVICE

PACKING - piston, uses press in outer rod wiper

1шт.

16

D28897

PISTON

G - split, rod end, uses press in outer rod wiper

1шт.

17a

G32115

GLAND

- packing, uses press in outer rod wiper

1шт.

18

D33267

ROD

- piston (1-3/4" dia.), uses press in outer rod wiper, Includes: Ref. 19

1шт.

19

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod eye, uses press in outer rod wiper

2шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Uses press in outer rod wiper 90º, 1/8" NPT x .84" lg

1шт.
