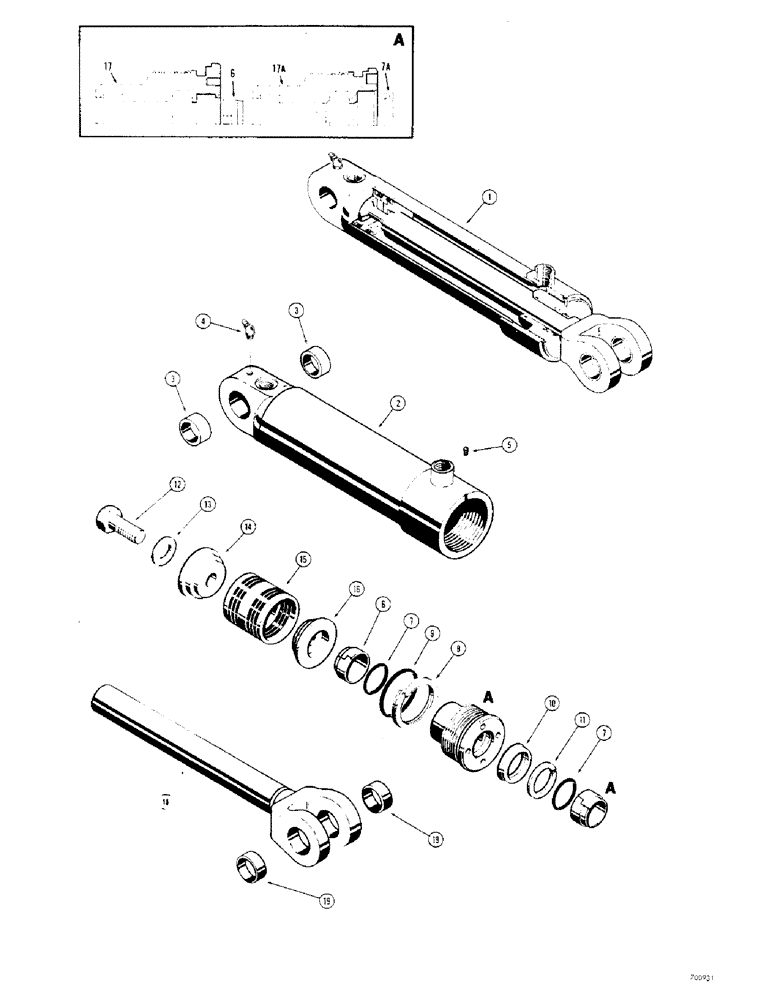

Запчасти Case 310G (260) - LOADER HYDRA-LEVELING CYLINDERS, USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D33123

CYLINDER BLOCK

CYLINDER - hydra-leveling (2-1/2" I.D. x 9" stroke)

2шт.

This cylinder uses D37352 and D42869 kits. See figure 284 for kit components.

1шт.

2

D33197

TUBE

- hydra-leveling cylinder, Includes: Ref. 3 - 19

1шт.

3

D33233

BUSHING - cylinder tube end

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree (1/8" NPT)

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27706

WIPER SEAL

WIPER - rod

2шт.

7

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, wiper (If used)

2шт.

8

D27856

RING

- backup, gland seal

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

10

D36969

CUP

SEAL - rod

1шт.

11

D28498

RING

- backup, rod seal

1шт.

12

D29306

BOLT

- special

1шт.

13

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

15

D28373

PACKING

- piston

1шт.

16

D28363

PISTON

- split, rod end

1шт.

17

D45066

GLAND

- packing (When stock is exhausted, use G32119 gland and D95142 wiper)

1шт.

18

D33817

PISTON ROD

ROD - piston (1-1/2" dia.), Includes: Ref. 19

1шт.

19

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- piston rod yoke

1шт.

1

G32460

CYLINDER - hydra-leveling (2-1/2" I.D. x 9" stroke), uses press in outer rod wiper, Includes: Ref. 2 - 19

2шт.

This cylinder uses G32294 kit. See figure 284 for kit components.

1шт.

2

D33197

TUBE

- cylinder, uses press in outer rod wiper, Includes: Ref. 3

1шт.

3

D33233

BUSHING - tube eye, uses press in outer rod wiper

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT), uses press in outer rod wiper

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

6

D27706

WIPER SEAL

WIPER - rod, inner, uses press in outer wiper

1шт.

7a

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - rod, outer, uses press

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland, uses press in outer rod wiper

1шт.

10

D36969

CUP

SEAL - rod, uses press in outer wiper

1шт.

12

D29306

BOLT

- special, uses press in outer rod wiper

1шт.

13

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, uses press in outer rod wiper

1шт.

14

D28364

PISTON

- split, bolt end, uses press in outer rod wiper

1шт.

15

D28373

PACKING

- piston, uses press in outer rod wiper

1шт.

16

D28363

PISTON

- split, rod end, uses press in outer rod wiper

1шт.

17a

G32119

GLAND

- packing, uses press in outer rod wiper

1шт.

18

D33817

PISTON ROD

ROD - pistong (1-1/2" dia.), uses press in outer rod wiper, Includes: Ref. 19

1шт.

19

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- piston rod yoke, uses press in outer wiper

1шт.
