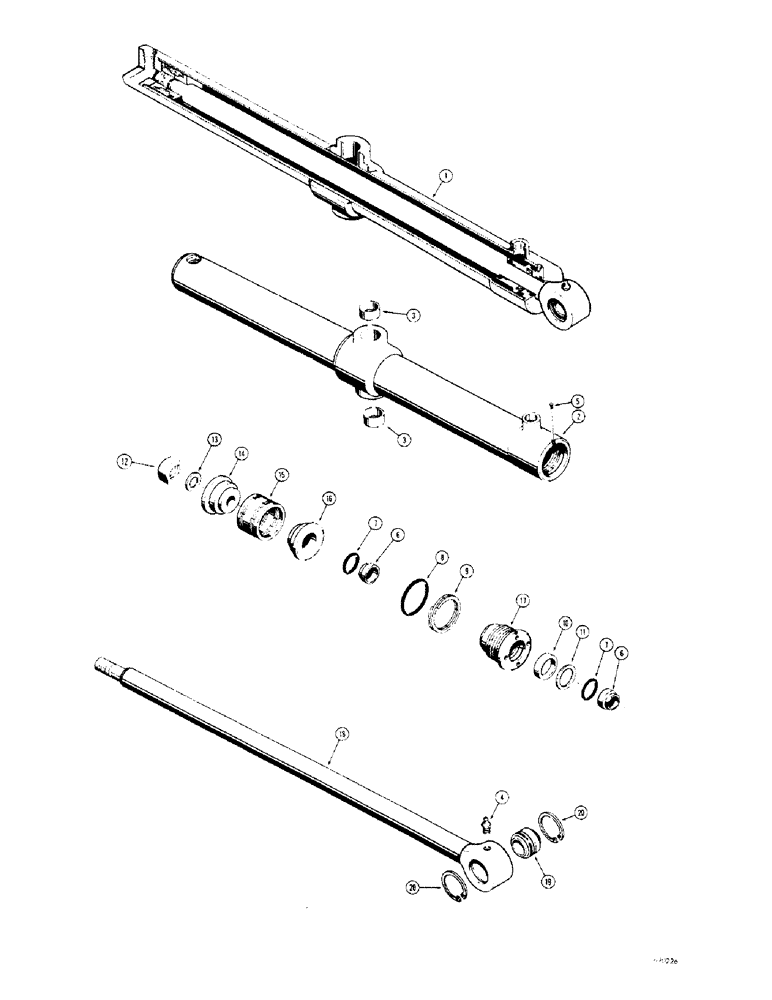

Запчасти Case 310G (268) - DOZER LIFT CYLS., (ALL DOZER MODELS EXCEPT PWR ANGLE-TILT DOZER), USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D28219

CYLINDER

- lift, power angling dozer (2-1/2" I.D. x 25-1/2" stroke), Includes: Ref. 2 - 20

2шт.

These cylinders use D37350 and D42867 packing kits. See figure 288 for kit components.

1шт.

1

D27826

CYLINDER - lift, mechanical angling dozer and bulldozer (2-1/2" I.D. x 27-3/8" stroke), Includes: Ref. 2 - 20

2шт.

These cylinders use D37350 and D42867 packing kits. See figure 288 for kit components.

1шт.

1a

D30076

CYLINDER ASSY.

CYLINDER - lift, power tilt dozer (2-1/2" I.D. x 25-1/2" stroke) Not illustrated, Includes: Ref. 2 - 20

2шт.

These cylinders use D37350 and D42867 packing kits. See figure 288 for kit components.

1шт.

2

D28257

TUBE - cylinder, D28219 cylinder, Includes: Ref. 3

1шт.

2

D27837

TUBE - cylinder, D27826 cylinder, Includes: Ref. 3

1шт.

2a

D30075

TUBE - cylinder, D30076 cylinder (Not illustrated), Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion (D27837, D27837 and D30075 tubes)

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) D27826 cylinder only

1шт.

4a

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , D30076 and D28219 cylinders, Not illustrated 90º, 1/8" NPT x .84" lg

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27705

WIPER

- rod

2шт.

7

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27856

RING

- backup, gland seal

1шт.

10

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod

1шт.

11

D28497

RING

- backup, rod seal

1шт.

12

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

13

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

14

D28364

PISTON

- split, nut end

1шт.

15

D28373

PACKING

- piston

1шт.

16

NLS

NO LONGER SERVICED

PISTON - split, eye end

1шт.

17

D45065

GLAND

- packing

1шт.

18

D28260

ROD ASSY.

ROD - piston (1-1/4" dia.) D30076 and D28219 cylinder, Includes: Ref. 19 and 20

1шт.

18a

D27828

PISTON ROD

ROD - piston (1-1/4" dia.) D27826 cylinder (Not shown), Includes: Ref. 19 and 20

1шт.

19

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - self-aligning

1шт.

20

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.
