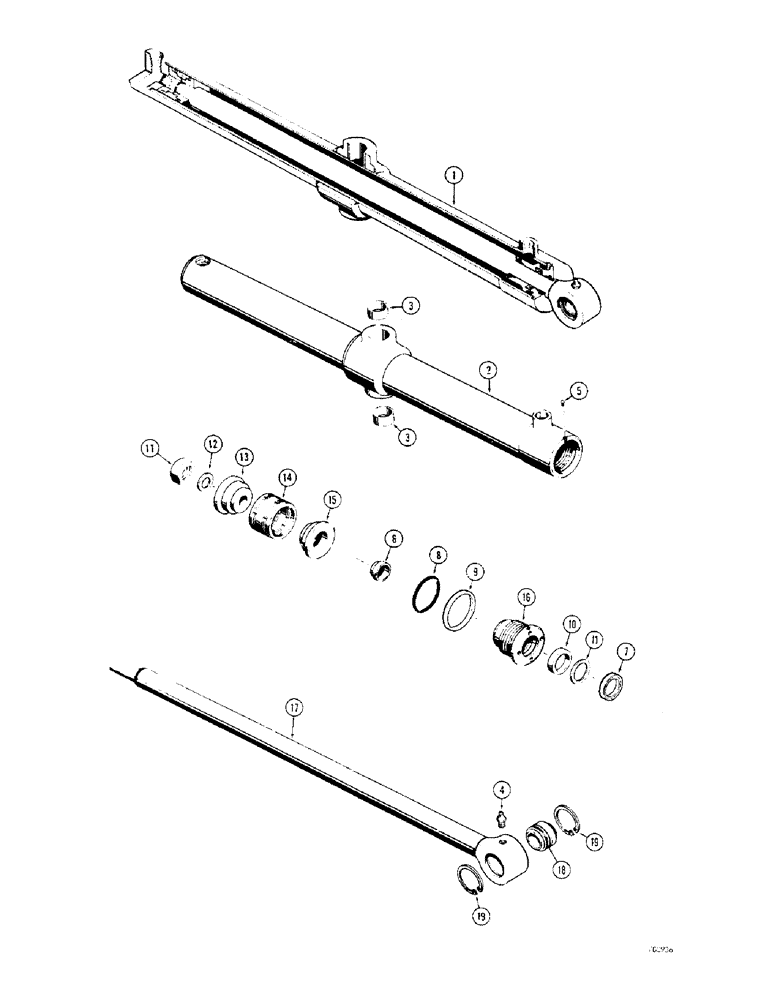

Запчасти Case 310G (269A) - DOZER LIFT CYLINDERS, (ALL DOZER MODELS EXCEPT POWER ANGLE TILT DOZERS) USES PRES IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

G32478

CYLINDER

- lift, power angling dozer (2-1/2" I.D. x 25-1/2" stroke), Includes: Ref. 2 - 19

2шт.

These cylinders use G32295 packing kit. See figure 288 for kit components.

1шт.

1

G32477

CYLINDER - lift, mechanical angling dozer and bulldozer (2-1/2" I.D. x 27-3/8" stroke), Includes: Ref. 2 - 19

2шт.

These cylinders use G32295 packing kit. See figure 288 for kit components.

1шт.

1

G32467

CYLINDER

- lift, power tilt dozer (2-1/2" I.D. x 25-1/2" stroke), Includes: Ref. 2 - 19

2шт.

These cylinders use G32295 packing kit. See figure 288 for kit components.

1шт.

2

D28257

TUBE - G32478 cylinder, Includes: Ref. 3

1шт.

2

D27837

TUBE - G32477 cylinder, Includes: Ref. 3

1шт.

2

D30075

TUBE - G32467 cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion (D28257, D27837 and D30075 tubes)

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) G32477 cylinder only)

1шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , G32478 and G32467 cylinders (Not shown) 90º, 1/8" NPT x .84" lg

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27705

WIPER

- rod, inner

1шт.

7

D95141

WIPER SEAL

WIPER - rod, outer

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland seal

1шт.

10

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod

1шт.

11

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

12

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special

1шт.

13

D28364

PISTON

- split, nut end

1шт.

14

D28373

PACKING

- gland

1шт.

15

NLS

NO LONGER SERVICED

- split, eye end

1шт.

16

G32118

GLAND

- packing

1шт.

17

D28260

ROD ASSY.

ROD - piston (1-1/4" dia.) G32467 and G32478 cylinders, Includes: Ref. 18 and 19

1шт.

17

D27828

PISTON ROD

ROD - piston (1-1/4" dia.) G32477 cylinder (Not shown), Includes: Ref. 18 and 19

1шт.

18

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - self-aligning

1шт.

19

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

2шт.
