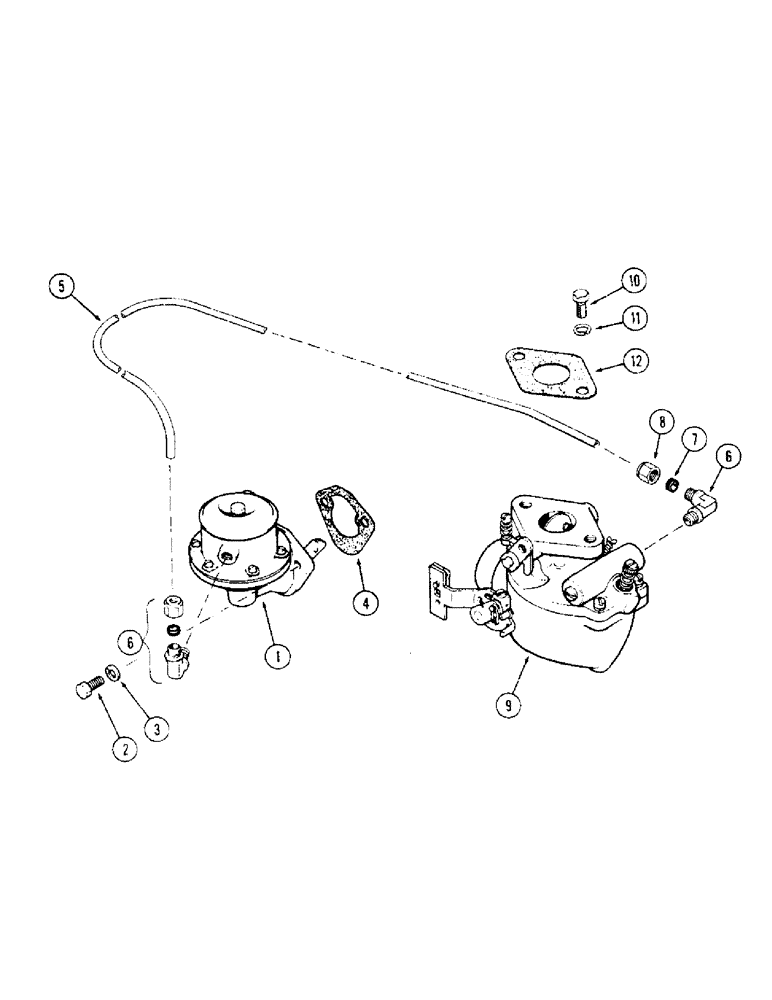

Запчасти Case 310G (022) - FUEL PUMP AND CARBURETOR, (148B) SPARK IGNITION ENGINE (02) - FUEL SYSTEM

1

G45778

PUMP

ASSY - fuel

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3

92-5

LOCK WASHER,5/16"

2шт.

4

G46902

GASKET

- fuel, Serial Range: pump-block

1шт.

5

G46289

LINE

- fuel, Serial Range: pump-carburetor

1шт.

6

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- fuel line, 5/16" tube x 1/8" P.T., Includes: Ref. 7 and 8

2шт.

7

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

8

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

9

G45779

CARBURETOR - (Marvel-Schebler #TSX-804) (Repairs figure 23C) (Can use A38241)

1шт.

9

A38241

CARBURETOR

- (Marvel-Schebler #8-4957X) (Repairs figure 23A)

1шт.

10

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.
