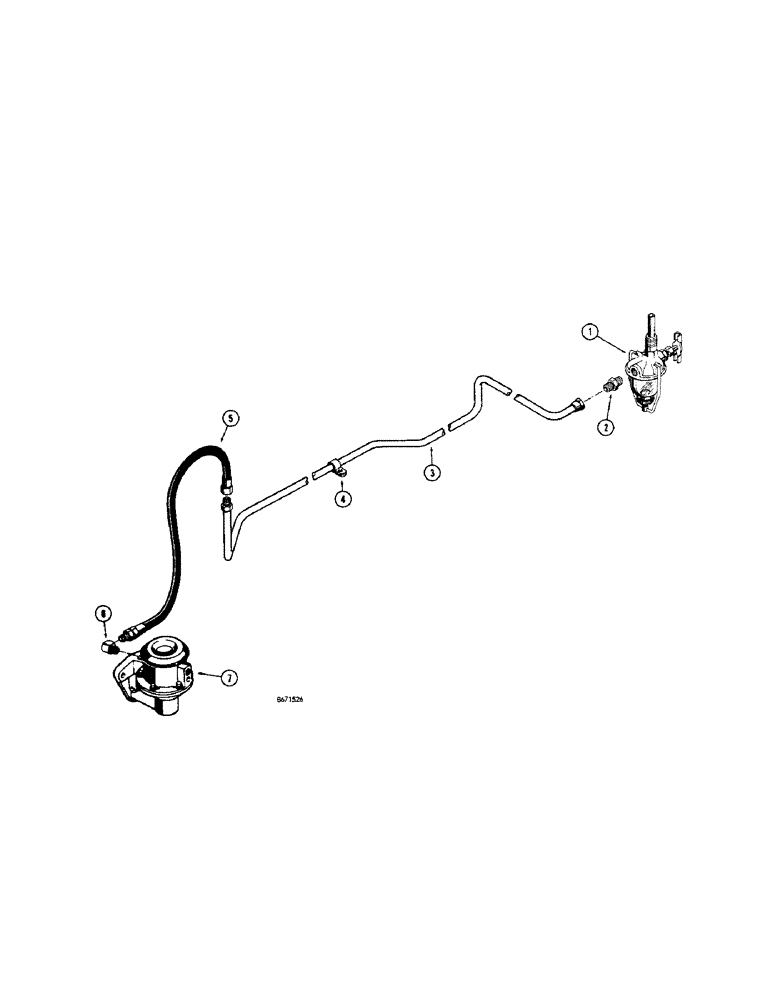

Запчасти Case 310G (050) - FUEL LINES, FUEL PUMP, AND STRAINER - GAS (02) - FUEL SYSTEM

1

33487

STRAINER ELEMENT

STRAINER - fuel (Parts list below)

1шт.

2

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male, straight

1шт.

3

D28153

TUBE - fuel line, Serial Range: tank-hose

1шт.

4

49832

CLAMP

- tube

1шт.

5

D25471

HOSE ASSY.

HOSE - fuel line, tube to fuel pump (12-1/2" long)

1шт.

6

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

- male, 90 degrees

1шт.

7

G45778

PUMP

- fuel (See Figure 042)

1шт.
