(124[1]) - TRACK CARRIER ROLLER

Запчасти Case 310G (124[1]) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

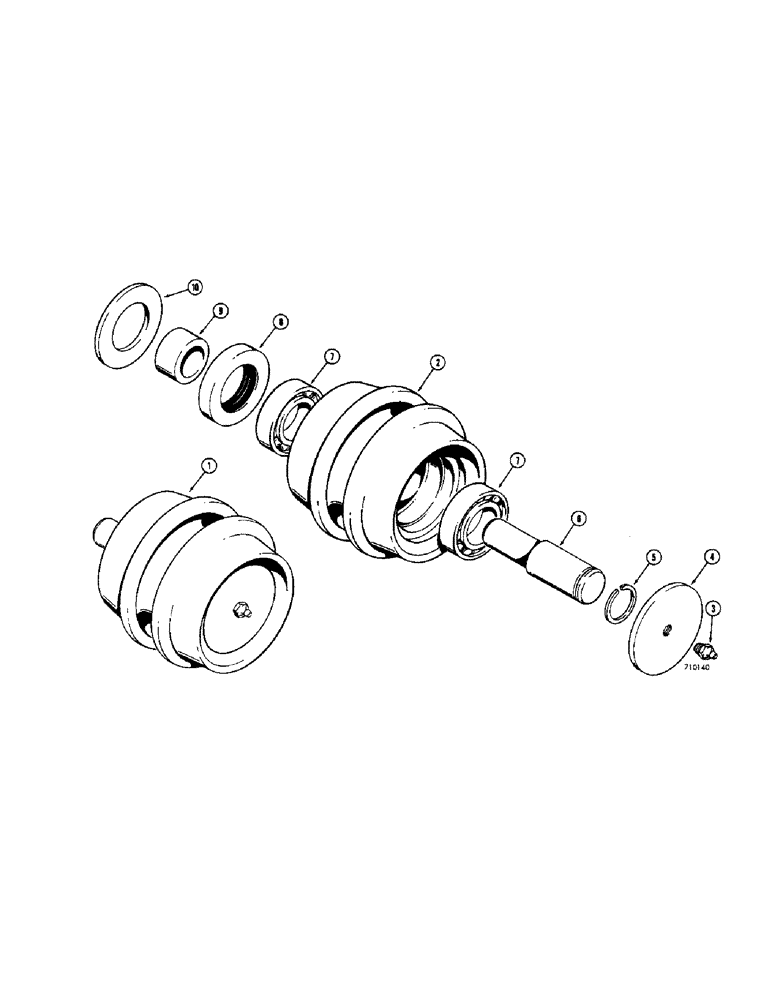

Схема запчастей Case 310G - (124[1]) - TRACK CARRIER ROLLER (04) - UNDERCARRIAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D42203

ROLLER

- track carrier, complete

2шт.

2

31163

ROLLER

HUB - track carrier roller

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

4

D42204

SHIELD

- bearing

1шт.

5

A27074

RING, SNAP

RING - snap

1шт.

6

D42205

SHAFT

- track carrier roller

1шт.

7

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

BEARING - ball

2шт.

8

D29138

OIL SEAL

SEAL - oil, 4 lip

1шт.

9

D29133

SPACER

- bearing

1шт.

10

D29134

SHIELD

WASHER - special, shield

1шт.
