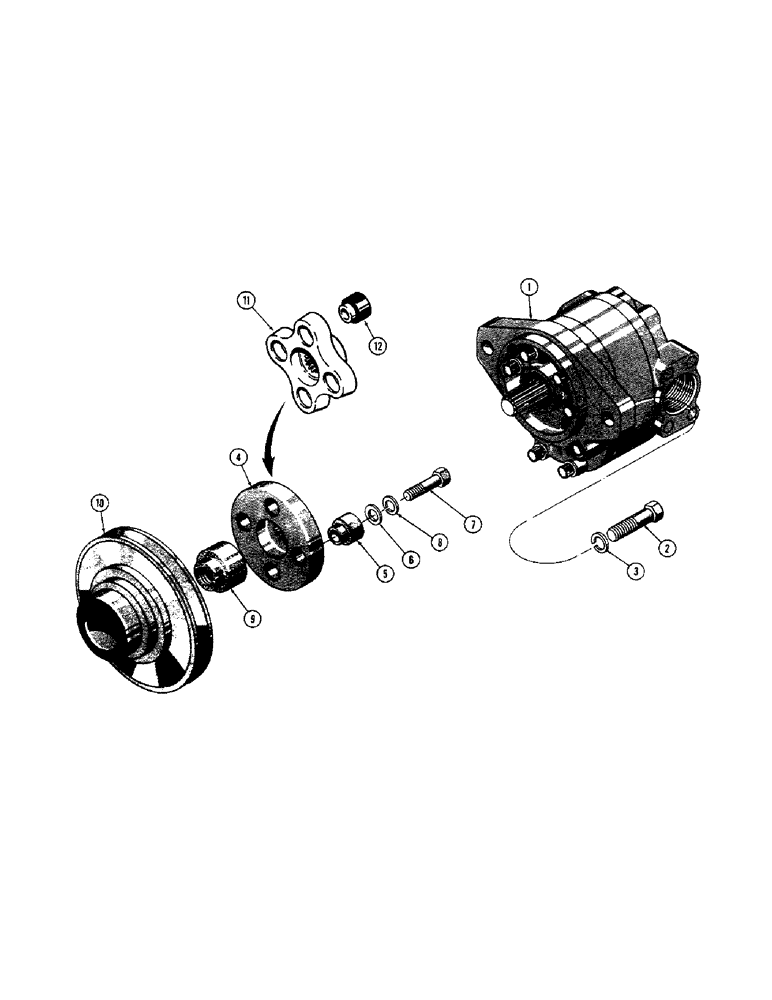

Запчасти Case 350 (178) - PUMP DRIVE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

PUMP - hydraulic, see figures 172 thru 176 for pumps

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

D140524

FLEXIBLE COUPLING,13T

COUPLING - flexible, use A51885, Includes: Ref. 5

1шт.

5

G36905

BLOCK

AND BUSHING - flex coupling

4шт.

6

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- coupling bolt

4шт.

7

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

8

92-7

LOCK WASHER,7/16"

4шт.

9

A35673

NUT

- fan drive pulley

1шт.

10

A50962

PULLEY

- fan and generator drive

1шт.

11

A51885

COUPLING, BREAK AWAY

COUPLING - flexible, if used, Includes: Ref. 12

1шт.

12

A45216

BUSHING

- coupling

4шт.
