(208) - THREE POINT HITCH HYDRAULIC CIRCUIT, MODELS WITHOUT DIVERSION VALVE

Запчасти Case 350 (208) - THREE POINT HITCH HYDRAULIC CIRCUIT, MODELS WITHOUT DIVERSION VALVE (07) - HYDRAULIC SYSTEM

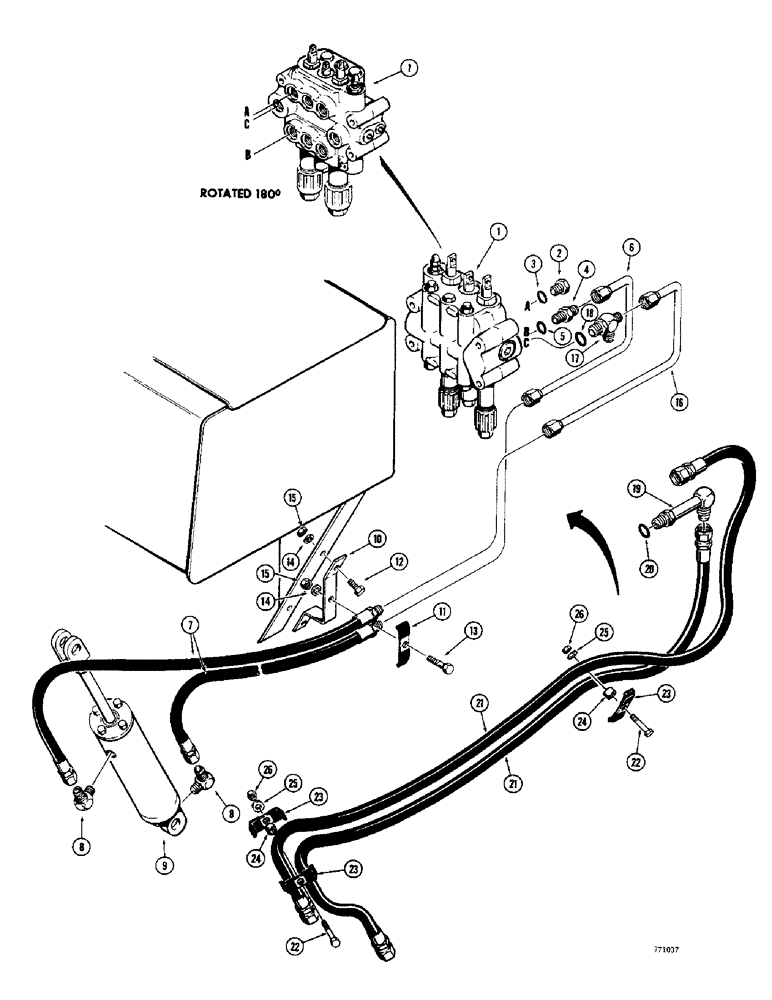

Схема запчастей Case 350 - (208) - THREE POINT HITCH HYDRAULIC CIRCUIT, MODELS WITHOUT DIVERSION VALVE (07) - HYDRAULIC SYSTEM
20
22
11
23
22
15
4
23
2
1
8
18
26
23
24
3
21
14
13
6
8
26
12
14
24
17
25
1
9
16
25
5
21
7
15
10
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE - control, see figures 336 thru 342 for proper valves

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 3 Hex Hd, 7/8"-14 ORB

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

6

D38147

TUBE - lower control valve port to hydraulic cylinder, closed end

1шт.

7

D21955

HOSE - 28" (711 MM) long

2шт.

8

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, male

2шт.

9

A11231

CYLINDER

- three point hitch, see figure 222 for cylinder

1шт.

10

D38331

BRACKET - mounting, hose clamp

1шт.

11

D33316

CLAMP

PLATE - clamp, hose

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

13

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

14

195-21

WASHER,5/16"

- flat, 5/16"

3шт.

15

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

3шт.

16

D38153

TUBE - hydraulic cylinder, rod end to control valve, return port

1шт.

17

218-5247

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 1 5/16"-12

- adjustable, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

19

D23143

FITTING

ELBOW - 90 degree, adjustable, dual pull behind models only, Includes: Ref. 20

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow, dual pull behind models only

1шт.

21

R24291

HOSE ASSY.

HOSE - 1/2" (12.7 MM) ID x 57" (1448 MM) long, dual pull behind models only

2шт.

22

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Dual pull behind models only Hex, 5/16"-18 x 2", G5

2шт.

23

D33316

CLAMP

- hoses, dual pull behind models only

3шт.

24

D33829

BUSHING

SPACER - clamp, dual pull behind models only

2шт.

25

195-21

WASHER,5/16"

- flat, , Dual pull behind models only 5/16"

2шт.

26

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16", dual pull behind models only

2шт.
