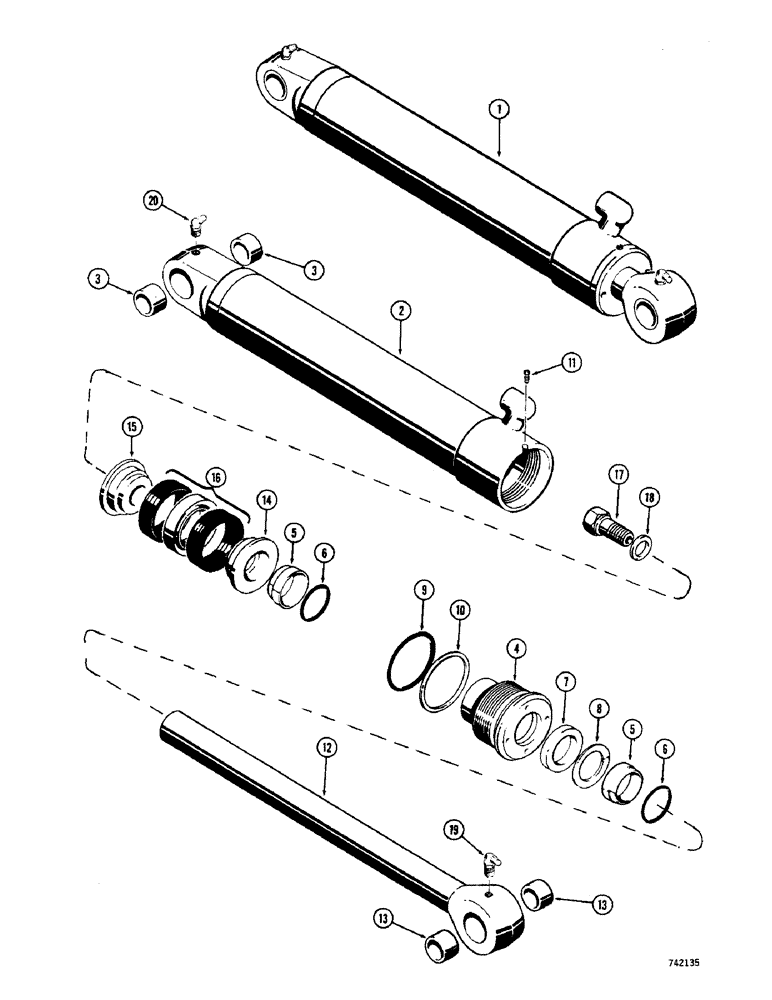

Запчасти Case 350 (234) - D33121 AND D33122 LOADER LIFT CYLINDERS, HAS SPLIT INNER AND OUTER WIPERS (07) - HYDRAULIC SYSTEM

1

D33121

CYLINDER

- RH, 3" (76 MM) dia x 31" (787 MM) stroke, service with G101242 cylinder, Includes: Ref. 2 - 20

1шт.

1

D33122

CYLINDER

- LH, 3" (76 MM) dia x 31" (787 MM) stoke, service with G3795 cylinder, Includes: Ref. 2 - 20

1шт.

2

D33272

TUBE

- D33121 cylinder, Includes: Ref. 3

1шт.

2

D33273

TUBE

- D33122 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

1шт.

4

D45068

GLAND

- cylinder

1шт.

D42872

GLAND

PACKING KIT - gland, Includes: Ref. 5 - 11

1шт.

5

D27432

SHIM

- piston rod

2шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- gland, not used in these cylinders

2шт.

7

D36970

CUP

SEAL - piston rod

1шт.

Service option P/N G100777 - severe heat or cold

1шт.

8

D28499

RING

- piston rod seal backup

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

10

D28049

RING

- backup

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D33267

ROD

- piston, 1-3/4" (44 MM) diameter, Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

D28897

PISTON

- split, rod end

1шт.

15

D28896

PISTON

- split, bolt end

1шт.

16

G33151

PACKING

- piston

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.
