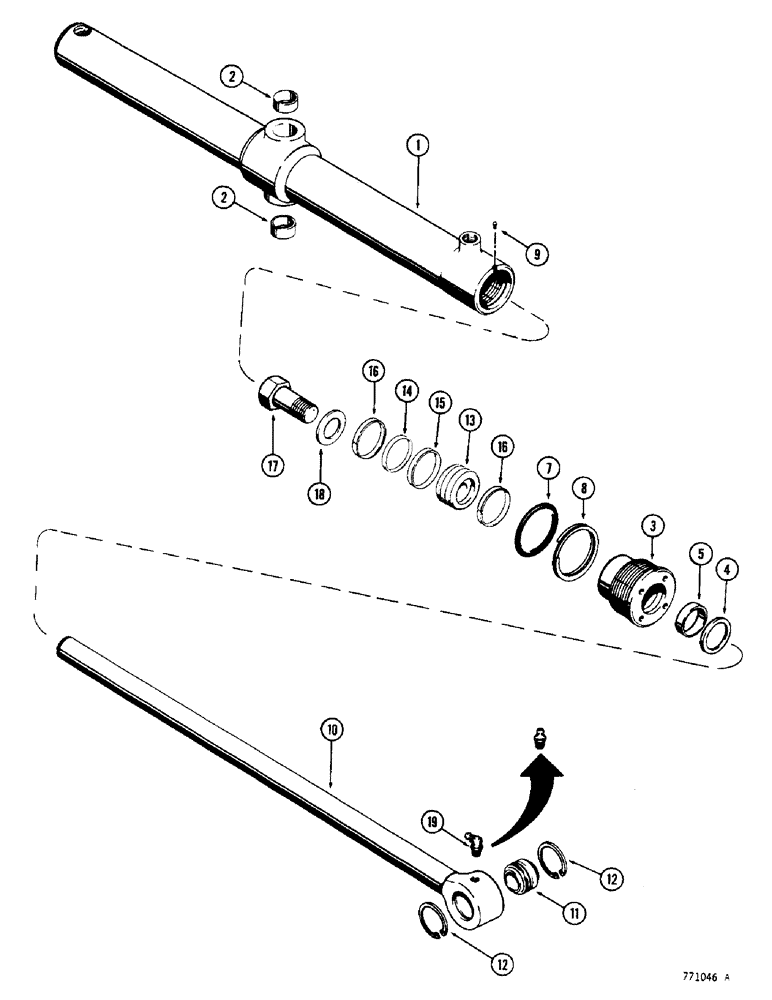

Запчасти Case 350 (264) - G101235 LIFT CYL.-MECHANICAL ANGLE DOZER, G101239 LIFT CYL.-PWR.ANGLE DOZER G101240 LIFT CYL.- (07) - HYDRAULIC SYSTEM

G101235

JACK BODY

CYLINDER - mechanical angle dozer, 2-1/2" (64 MM) ID x 27-3/8" (696 MM) stroke, Includes: Ref. 1 - 20

2шт.

G101239

JACK BODY

CYLINDER - power angle dozer, 2-1/2" (64 MM) ID x 25-1/2" (648 MM) stroke, Includes: Ref. 1 - 20

2шт.

G101240

JACK BODY

CYLINDER - power tilt dozer, 2-1/2" (64 MM) ID x 25-1/2" (648 MM) stroke, Includes: Ref. 1 - 20

2шт.

1

D30075

TUBE - G101240 cylinder, Includes: Ref. 2

1шт.

1

D27837

TUBE - G101235 cylinder, Includes: Ref. 2

1шт.

1

D28257

TUBE - G101239 cylinder, Includes: Ref. 2

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- all tubes

2шт.

G33578

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95141

WIPER SEAL

WIPER - outer

1шт.

Part of Seal Kit P/N G102407

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod

1шт.

Part of Seal Kit P/N G102407

1шт.

Service option P/N G100775 - severe heat or cold

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102407

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup

1шт.

Part of Seal Kit P/N G102407

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

10

G33358

ROD

- 1-1/4" (32 MM) diameter, G101240 and G101239 cylinders, Includes: Ref. 11 and 12

1шт.

10

G33363

ROD

- 1-1/4" (32 MM) diameter, G1012358 cylinder, Includes: Ref. 11 and 12

1шт.

11

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - all rods

1шт.

12

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , all rods 1.625", Int, #162

1шт.

13

G100708

PISTON

- cylinder

1шт.

14

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING - rubber

1шт.

Part of Seal Kit P/N G102407

1шт.

15

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G102407

1шт.

16

G100714

RING

- wear

2шт.

Part of Seal Kit P/N G102407

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , G101239 and G101240 cylinders 90º, 1/8" NPT x .84" lg

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, G101235 cylinder

1шт.

G102407

SEAL

KIT - seal, Includes: Ref. 4, 5, 7, 8 and 14 - 16

1шт.

G100775

SEAL

- rod, service option - severe heat or cold

1шт.
