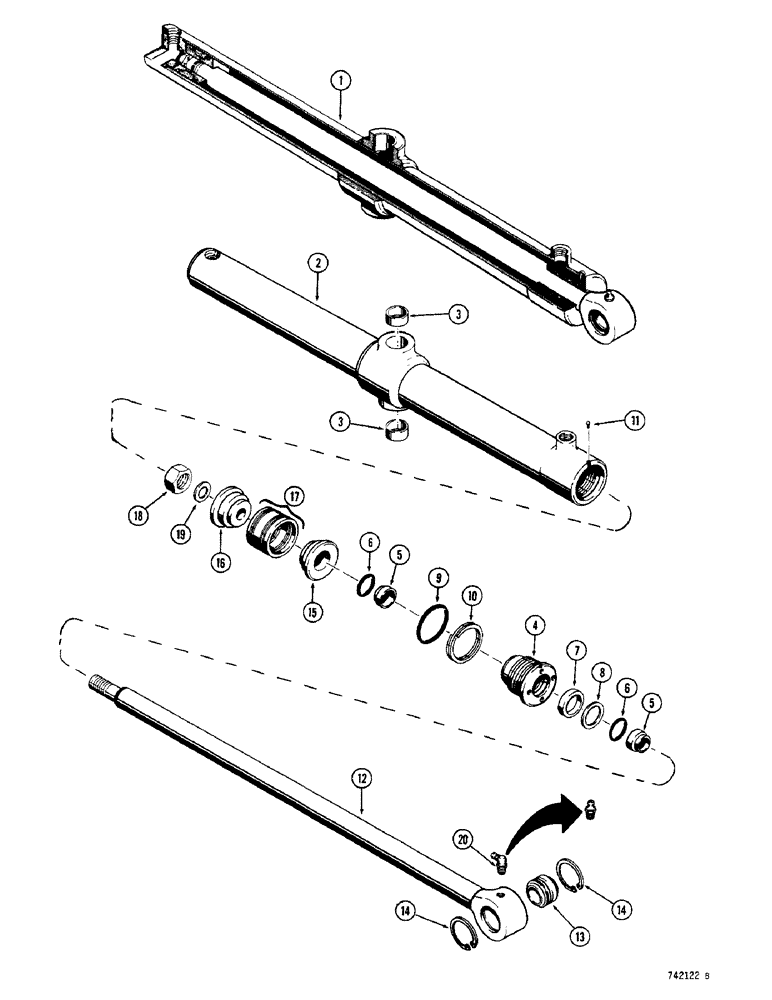

Запчасти Case 350 (270) - D28219 LIFT CYL.-PWR. ANGLE DOZER, D30076 LIFT CYL.-PWR.TILT DOZER D27826 LIFT CYL.-MECH.ANGLE DOZER (07) - HYDRAULIC SYSTEM

1

D28219

CYLINDER

- lift, power angle dozer, 2-1/2" (64 MM) ID x 25-1/2" (648 MM) stroke, service with G33357 cylinder, Includes: Ref. 2 - 21

2шт.

1

D30076

CYLINDER ASSY.

CYLINDER - lift, power tilt dozer, 2-1/2" (64 MM) ID x 25-1/2" (648 MM) stroke, service with one G101240 cylinder, Includes: Ref. 2 - 21

2шт.

1

D27826

CYLINDER - lift, mechanical angle dozer, 2-1/2" (64 MM) ID x 27-3/8" (696 MM) stroke, service with G33362 cylinder, Includes: Ref. 2 - 21

2шт.

2

D28257

TUBE - D28219 cylinder, Includes: Ref. 3

1шт.

2

D30075

TUBE - D30076 cylinder, Includes: Ref. 3

1шт.

2

D27837

TUBE - D27826 cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- all tubes

2шт.

4

D45065

GLAND

- use G32732 gland, see figure 242

1шт.

D42867

GLAND

PACKING KIT - gland, replaces D37350, Includes: Ref. 5 - 11

1шт.

5

D27705

WIPER

- piston rod

2шт.

6

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- wiper, not used in these cylinders

2шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

Service option P/N G100775 - severe heat or cold

1шт.

8

D28497

RING

- backup

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

10

D27856

RING

- gland

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4"

1шт.

12

D28260

ROD ASSY.

ROD - piston, 1-1/4" (32 MM) diameter, D28219 and D30076 cylinders, Includes: Ref. 13 and 14

1шт.

12

D27828

PISTON ROD

ROD - piston, 1-1/4" (32 MM) diameter, D27826 cylinder, Includes: Ref. 13 and 14

1шт.

13

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING - piston rod, self-aligning

1шт.

14

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , bushing 1.625", Int, #162

1шт.

15

NLS

NO LONGER SERVICED

- split, rod end

1шт.

16

D28364

PISTON

- split, nut end

1шт.

17

G33193

PACKING

- piston

1шт.

18

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, 3/4"-16, GB

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , D28219 and D30076 cylinders 90º, 1/8" NPT x .84" lg

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, D27826 cylinder

1шт.
