(336[1]) - D45037 EQUIPMENT VALVE - TWO SPOOL

Запчасти Case 350 (336[1]) - D45037 EQUIPMENT VALVE - TWO SPOOL (07) - HYDRAULIC SYSTEM

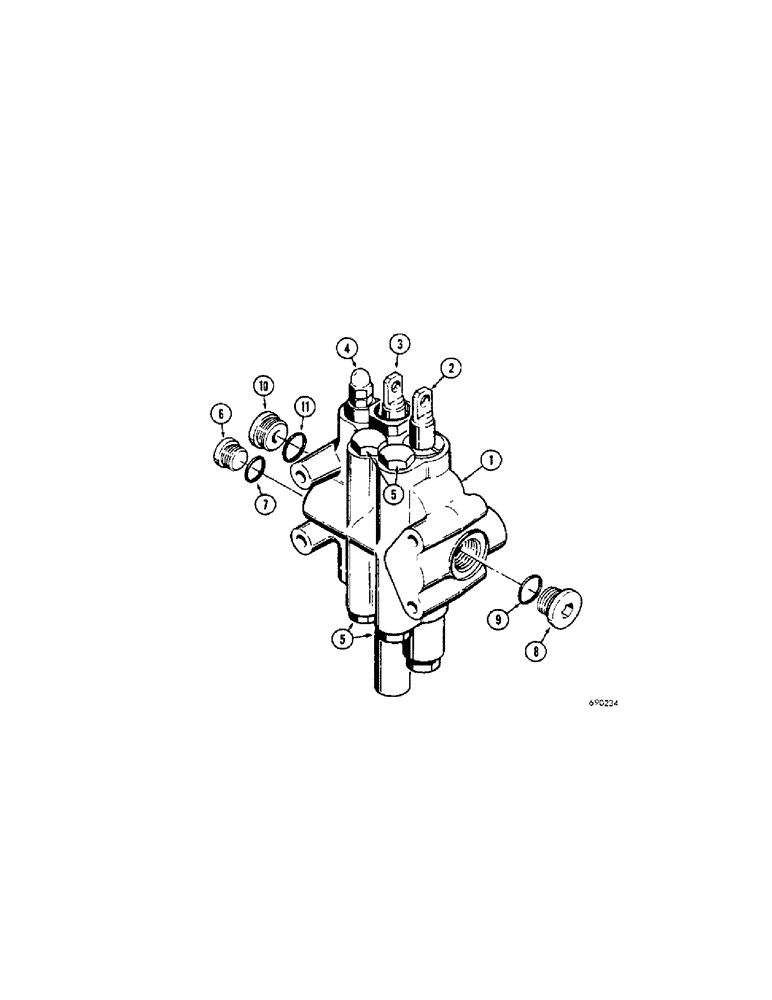

Схема запчастей Case 350 - (336[1]) - D45037 EQUIPMENT VALVE - TWO SPOOL (07) - HYDRAULIC SYSTEM
4
5
8
10
3
9
2
5
11
6
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D45037

VALVE

- equipment control, Parker VDP 22-FD-40, Includes: Ref. 2 - 11

1шт.

2

D37050

SPOOL

- three position, parts list figure 344

1шт.

3

D46024

SPOOL

- four position, parts list figure 348

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list figure 344

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check, parts list figure 350

4шт.

6

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 7 Hex Soc, 3/4"-16 ORB

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 9 Hex Soc, 1 1/16"-12 ORB

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

10

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 11 Hex Soc, 1 5/16"-12 ORB

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.
