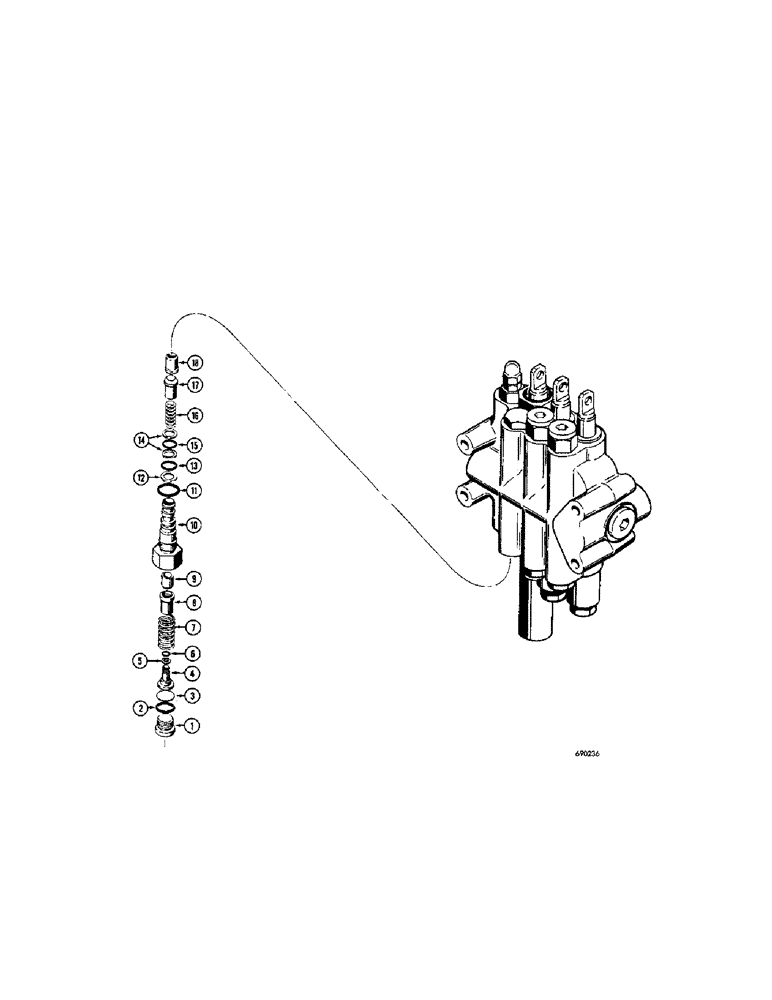

Запчасти Case 350 (340[1]) - SECONDARY RELIEF VALVE AND CHECK VALVE USED WITH D45039, D45041 AND R30045 EQUIPMENT VALVES 2500 PSI AND ABOVE (07) - HYDRAULIC SYSTEM

1

D40354

PLUG

- relief valve, Includes: Ref. 2

1шт.

3

16917

SHIM

- .0105" (0.267 MM)

1шт.

3

D40355

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

4

D37150

GUIDE

- spring

1шт.

5

D37147

RING

- backup, Teflon

1шт.

6

A51274

O-RING,0.145" ID x 0.285" OD

1шт.

7

D37148

SPRING

- plunger

1шт.

8

D37151

PLUNGER

- relief valve

1шт.

9

D37075

SEAT

- plunger

1шт.

10

D37072

CAP

BODY - relief valve

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- large

1шт.

12

D37071

RING

- backup

1шт.

13

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

14

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

- backup

2шт.

15

D26872

O-RING

- small

1шт.

16

D37067

SPRING

- poppet

1шт.

17

D37068

VALVE POPPET

POPPET - check valve

1шт.

18

D37069

SLEEVE

SEAT - poppet

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
