(342) - R30045 EQUIPMENT VALVE - FOUR SPOOL

Запчасти Case 350 (342) - R30045 EQUIPMENT VALVE - FOUR SPOOL (07) - HYDRAULIC SYSTEM

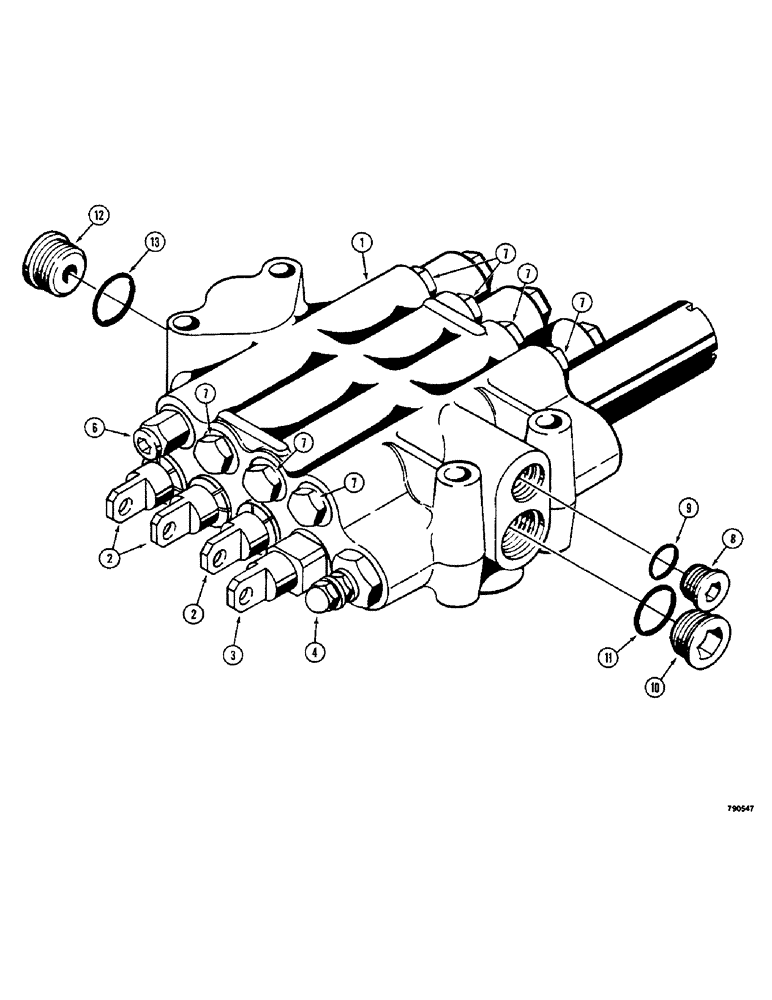

Схема запчастей Case 350 - (342) - R30045 EQUIPMENT VALVE - FOUR SPOOL (07) - HYDRAULIC SYSTEM
12
7
7
7
3
6
2
13
9
11
7
1
8
10
7
7
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R30045

VALVE

- equipment control, four spool, Includes: Ref. 2 - 13

1шт.

2

D37050

SPOOL

- three position, parts list figure 344

3шт.

3

D46024

SPOOL

- four position, parts list figure 348

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, parts list figure 344

1шт.

6

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, parts list figure 340

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - check, parts list figure 350

7шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref 9 Hex Soc, 3/4"-16 ORB

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref. 11 Hex Soc, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 13 Hex Soc, 1 5/16"-12 ORB

1шт.

13

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
