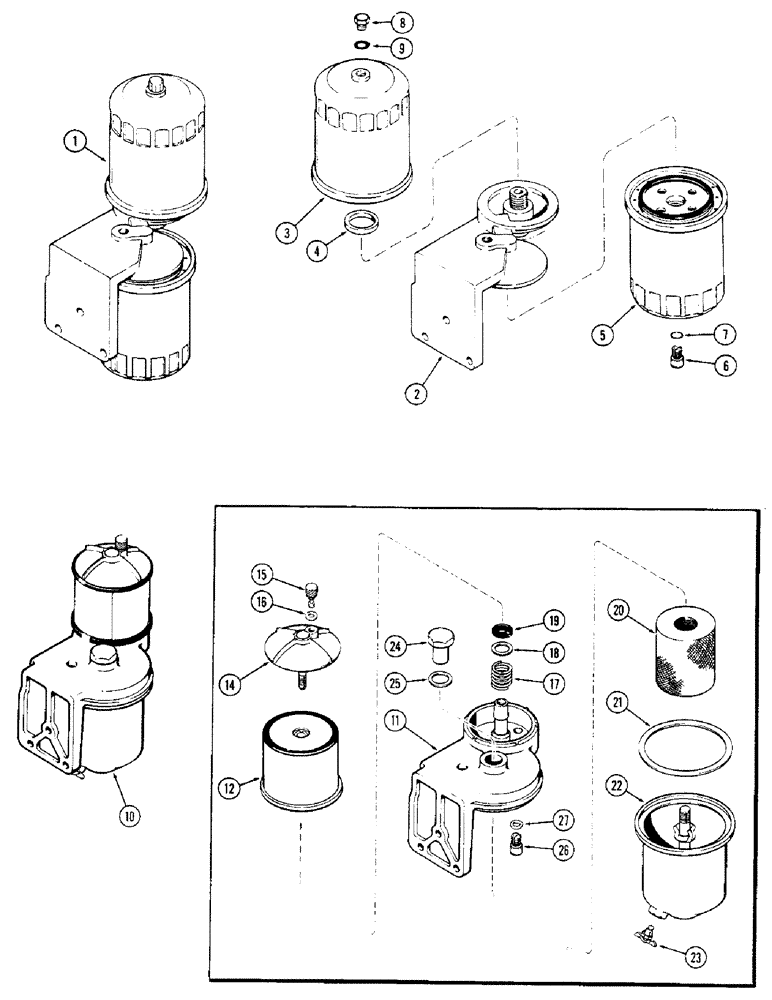

Запчасти Case 350 (062) - FUEL FILTERS, USED ENGINE SERIAL NO. 2718490 AND AFTER, SPIN ON TYPE (02) - FUEL SYSTEM

1

A51739

FILTER

ASSEMBLY - fuel (Replaces A39865), Includes: Ref. 2 - 9

1шт.

2

A51738

CYLINDER HEAD

HEAD - filter mounting (Replaces A39866)

1шт.

A151281

FUEL FILTER

FILTER KIT, Includes: Ref. 3 - 5

1шт.

3

A39867

FUEL FILTER

ASSEMBLY - fuel (Secondary) (15/16" threads), Includes: Ref. 4

1шт.

4

A42315

GASKET

- filter to head (15/16 x 1-1/4 x 1/4")

1шт.

5

A39868

FUEL FILTER

- fuel (Primary) (13/16" threads)

1шт.

6

G49080

PLUG

- primary filter drain (3/8" NF, 12 point head, nylon)

1шт.

7

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

8

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Assy, Secondary filter drain, Includes Ref. 9 Hex Hd, 3/8"-24 ORB

1шт.

9

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, drain plug

1шт.

10

A35735

FILTER

ASSEMBLY - fuel, used prior to engine sn 2718490, can type, Includes: Ref. 11 - 27

1шт.

11

A35664

HEAD

- mounting, fuel filter, used prior to engine sn 2718490, can type

1шт.

12

A51346

FILTER

ELEMENT KIT - final filter with gasket (Replaces A39109 and A37187), used prior to engine sn 2718490, can type, Includes: Ref. 14 - 16

1шт.

14

A35672

CAP

ASSEMBLY - final filter, used prior to engine sn 2718490, can type, Includes: Ref. 15 and 16

1шт.

15

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder, used prior to engine sn 2718490, can type

1шт.

16

NLS

NO LONGER SERVICED

GASKET - bleeder valve, used prior to engine sn 2718490, can type

1шт.

17

A35669

SPRING

- final filter, used prior to engine sn 2718490, can type

1шт.

18

A35670

WASHER

- seat, filter spring, used prior to engine sn 2718490, can type

1шт.

19

A35671

GASKET

- rubber, final filter, used prior to engine sn 2718490, can type

1шт.

20

A35863

FILTER, ELEMENT

ELEMENT ASSEMBLY - primary filter, used prior to engine sn 2718490, can type, Includes: Ref. 21

1шт.

21

A28056

GASKET

- filter body, used prior to engine sn 2718490, can type

1шт.

22

CASA37099

HOUSING

BODY - primary filter, used prior to engine sn 2718490, can type

1шт.

23

217-102

PLUG, DRAIN

VALVE - drain, used prior to engine sn 2718490, can type

1шт.

24

A21131

NUT

- primary filter to head, used prior to engine sn 2718490, can type

1шт.

25

A28055

GASKET

- nut to head, used prior to engine sn 2718490, can type

1шт.

26

G49080

PLUG

- drain, final filter, used prior to engine sn 2718490, can type

1шт.

27

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Drain plug, Used prior to engine S/N 2718490, can type

1шт.
