(118) - D52050 OIL FILTER

Запчасти Case 350 (118) - D52050 OIL FILTER (03) - TRANSMISSION

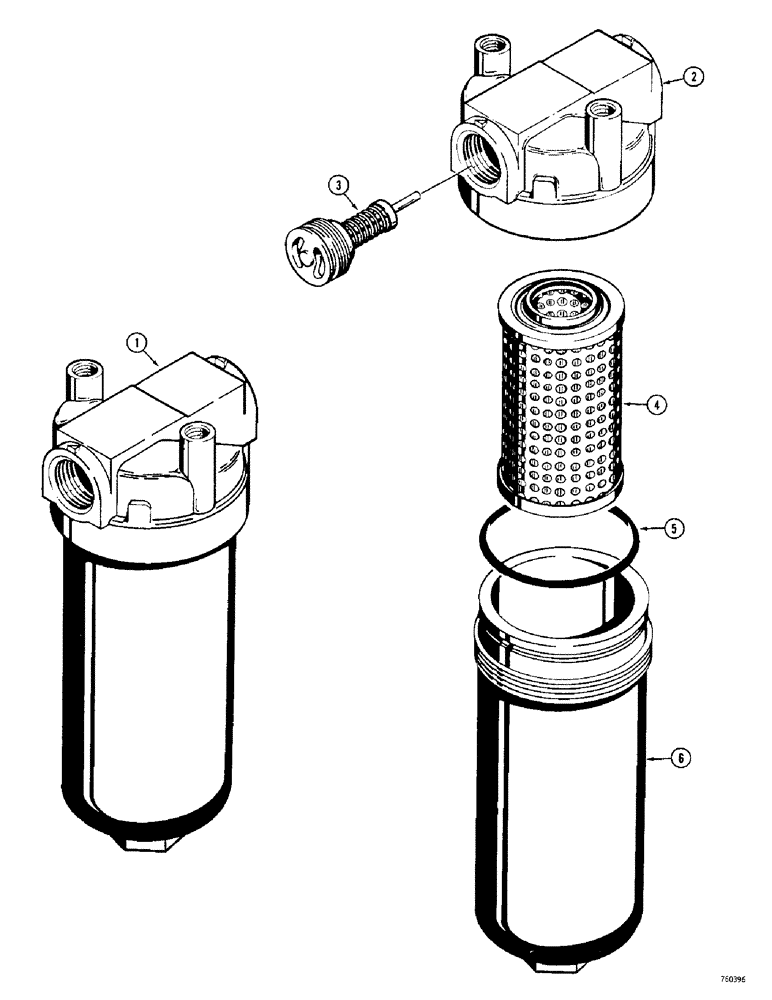

Схема запчастей Case 350 - (118) - D52050 OIL FILTER (03) - TRANSMISSION
4
6
3
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D52050

FILTER CARTRIDGE

FILTER ASSEMBLY - complete, Marvel no. 301161-2500, Includes: Ref. 2 - 6

1шт.

D61903

HEAD

ASSEMBLY - filter, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

D58199

VALVE

- bypass, oil

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter, 25 micron

1шт.

D51411

ELEMENT

KIT - filter element, Includes: Ref. 4 and 5

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- element

1шт.

6

D43799

HOUSING

- filter

1шт.
