(122) - D48467, R24152, R29681 & R35238 PWR. SHUTTLE TRANSMISSIONS, HOUSING AND OIL PAN BEFORE S/N 3065738

Запчасти Case 350 (122) - D48467, R24152, R29681 & R35238 PWR. SHUTTLE TRANSMISSIONS, HOUSING AND OIL PAN BEFORE S/N 3065738 (03) - TRANSMISSION

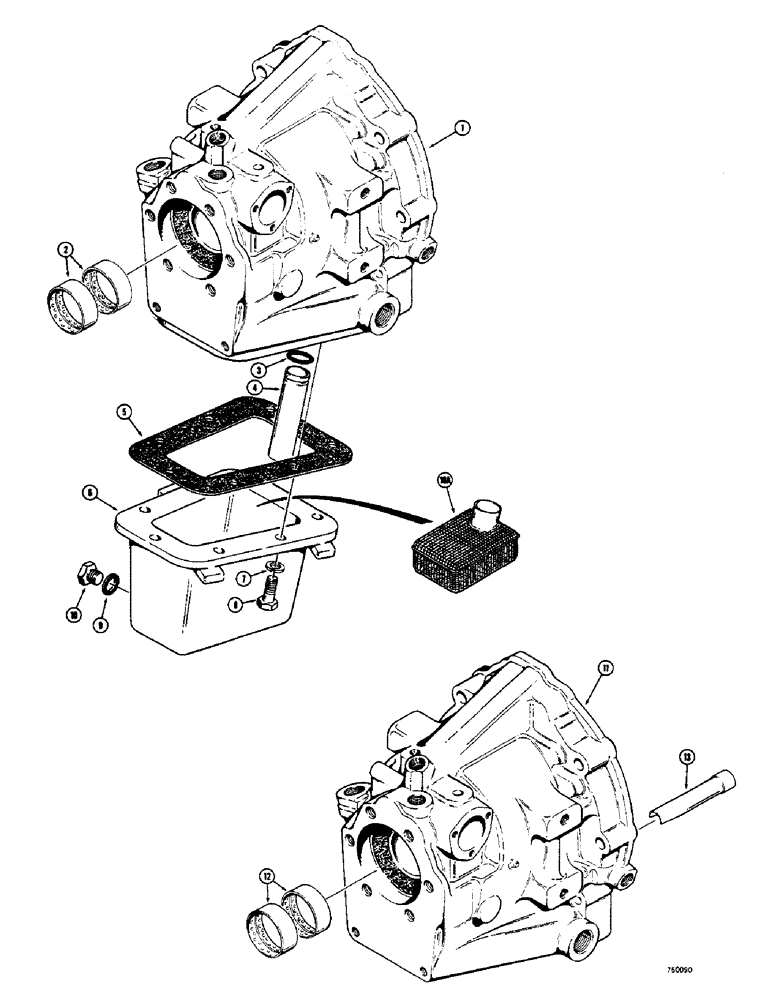

Схема запчастей Case 350 - (122) - D48467, R24152, R29681 & R35238 PWR. SHUTTLE TRANSMISSIONS, HOUSING AND OIL PAN BEFORE S/N 3065738 (03) - TRANSMISSION
13
12
1
10
9
18a
5
4
2
6
7
8
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R29681

CLUTCH ASSEMBLY

SHUTTLE ASSEMBLY - tractor sn 3050472 thru 3058363, for complete shuttle see figures 126, 134, and 136, use R35238, Includes: Ref. 1 - 10A

1шт.

R35238

GEARBOX ASSY

SHUTTLE ASSEMBLY - tractor sn 3058363 thru 3065738, for complete shuttle see figures 126, 134, and 136, Includes: Ref. 1 - 10A

1шт.

R29959

CASE

HOUSING ASSEMBLY - shuttle, Includes: Ref. 11 and 12

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - shuttle

1шт.

2

D50088

BUSHING

SET - output shaft

1шт.

3

R29797

O-RING,0.07" Thk x 0.739" ID

- oil return tube

1шт.

4

R29878

TUBE,0.772" ID x 0.879" OD x 3.5, 0.25" L

- oil return

1шт.

5

R29956

GASKET,0.76mm Thk

- oil pan

1шт.

6

R29902

PAN

- oil

1шт.

7

92-6

LOCK WASHER,3/8"

7шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

D73701

PLUG

ASSEMBLY - drain, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GASKET - drain plug

1шт.

10

NSS

NOT SOLD SEPARAT

PLUG - drain

1шт.

10a

D66455

FILTER SCREEN

SCREEN - sump, R35238 shuttle

1шт.

D48467

TRANSMISSION

SHUTTLE ASSEMBLY - see figures 126, 134, and 136, for service use R24152 shuttle, 218-457 fitting, 221-217 nipple and D52519 dipstick, housings used before trac sn 3050472, Includes: Ref. 11 and 12, Serial Range: -3047235

1шт.

D50027

CASE ASSY.

HOUSING ASSEMBLY - shuttle, use R24705 case, 208-457 fitting, 221-217 nipple, D52519 dipstick and D50062 breather, housings used before trac sn 3050472, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

CASE - shuttle, housings used before trac sn 3050472

1шт.

12

D50088

BUSHING

SET - output shaft, housings used before trac sn 3050472

1шт.

R24152

SHUTTLE ASSEMBLY - see figures 126, 134, and 136, housings used before trac sn 3050472, Includes: Ref. 11 - 13, Serial Range: 3047235-3050472

1шт.

R24705

CASE

HOUSING ASSEMBLY - shuttle, housings used before trac sn 3050472, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CASE - shuttle, housings used before trac sn 3050472

1шт.

12

D50088

BUSHING

SET - output shaft, housings used before trac sn 3050472

1шт.

13

R24706

TUBE - suction, housings used before trac sn 3050472

1шт.
