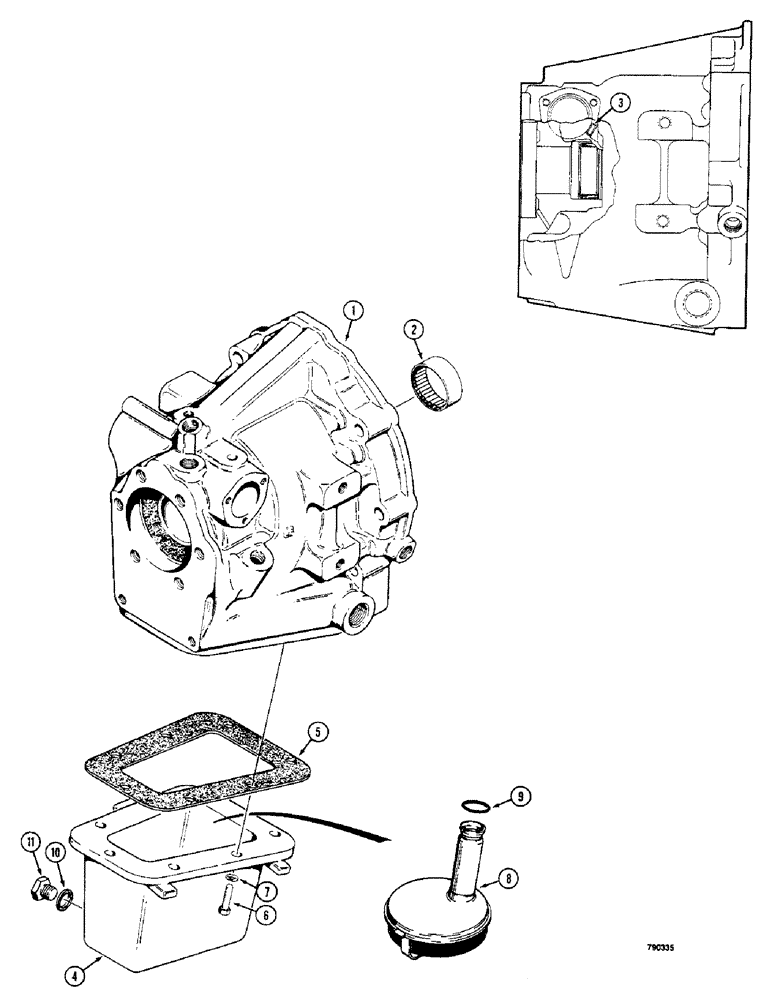

Запчасти Case 350 (124) - R40667 POWER SHUTTLE TRANSMISSION, HOUSING AND OIL PAN S/N 3065738 AND AFTER (03) - TRANSMISSION

R40677

SHUTTLE ASSEMBLY - for complete shuttle, see figures 130 thru 136, Includes: Ref. 1 - 11

1шт.

D70650

HOUSING

ASSEMBLY - shuttle, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - shuttle

1шт.

2

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 in ID

1шт.

3

41-1007

PLUG,Cup, 7/16"

- cup

1шт.

4

R29902

PAN

- oil

1шт.

5

R29956

GASKET,0.76mm Thk

- oil pan

1шт.

345-84

ADHESIVE

SEAL - 3 oz. (88.7 ML) of sealer in a tube, not shown, can be used in place of R29956 gasket

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

7шт.

7

92-6

LOCK WASHER,3/8"

7шт.

8

D66455

FILTER SCREEN

SCREEN - sump, shuttle

1шт.

9

R29797

O-RING,0.07" Thk x 0.739" ID

- screen

1шт.

D73701

PLUG

ASSEMBLY - drain, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

GASKET - drain plug

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - drain

1шт.
