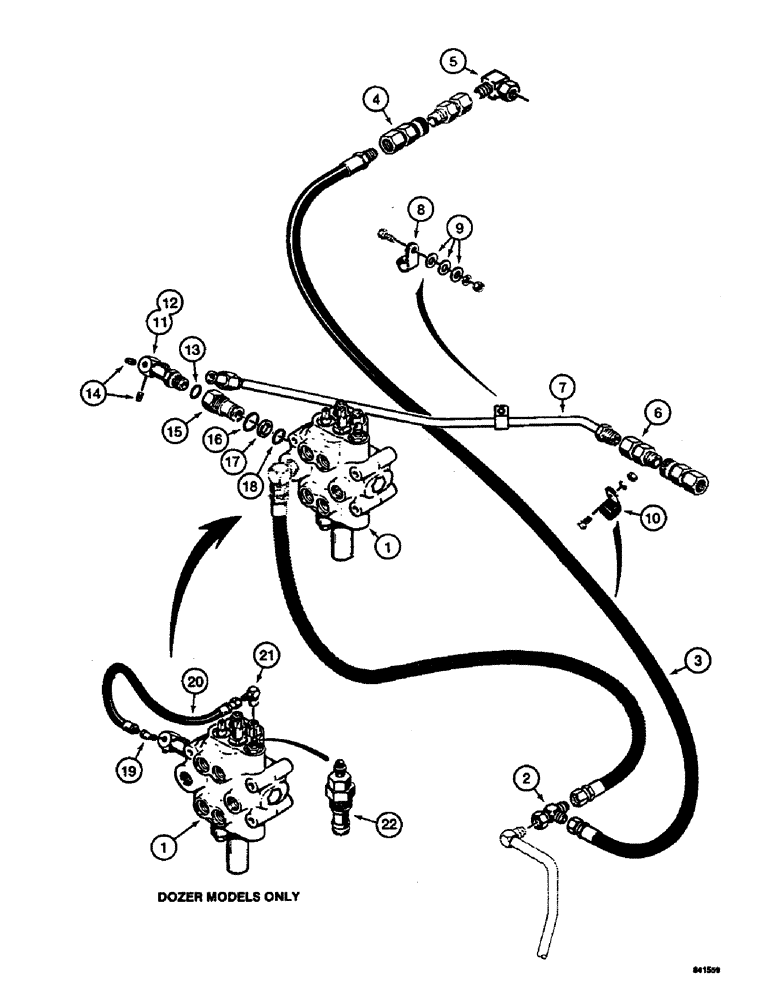

Запчасти Case 350B (184) - BACKHOE CONNECTING HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see figures 208-214

1шт.

2

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

3

D38619

HOSE ASSY.

HOSE - return from backhoe, 68" (1727 mm) long

1шт.

4

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list figure 190

1шт.

5

218-990

ELBOW,90 Degree, 1 3/16"-12 Sw x 3/4" NPT

- 90 degree, swivel, to connecting at stabilizer control valve

1шт.

6

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male, parts list figure 190

1шт.

7

F93298

TUBE - backhoe supply

1шт.

8

D35908

CLAMP,1" Clamping pipe

- tube, right-hand side of ROPS mounting plate

1шт.

9

95-10

WASHER,5/8"

- flat, bolt diameter, used as shim 5/8"

3шт.

10

D41564

- return hose, left-hand side of ROPS mounting plate

1шт.

11

D35472

FITTING

ELBOW - 90 degree, short, used on models with a 3 spool equipment control valve, if used, not shown

1шт.

12

D37824

ELBOW - 90 degree, long, used on models with a 2 spool equipment control valve, if used, Includes: Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- D35472 or D37824 elbow

1шт.

14

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT, two used on loader models, one used on dozer models

1-2шт.

D89496

FITTING

ADAPTER ASSEMBLY - control valve, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large, outer

1шт.

17

L31332

BACK-UP RING

BACKUP RING - small O-ring

1шт.

18

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- small, inner

1шт.

19

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male, Parts Used on Dozer Models Only

1шт.

20

D37189

HOSE

- 22" (559 mm) long, parts used on dozer models only

1шт.

21

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, swivel, parts used on dozer models only

1шт.

22

D38570

VALVE

RELIEF VALVE - dual stage, main relief valve section of equipment control valve, parts list figure 218, parts used on dozer models only

1шт.
