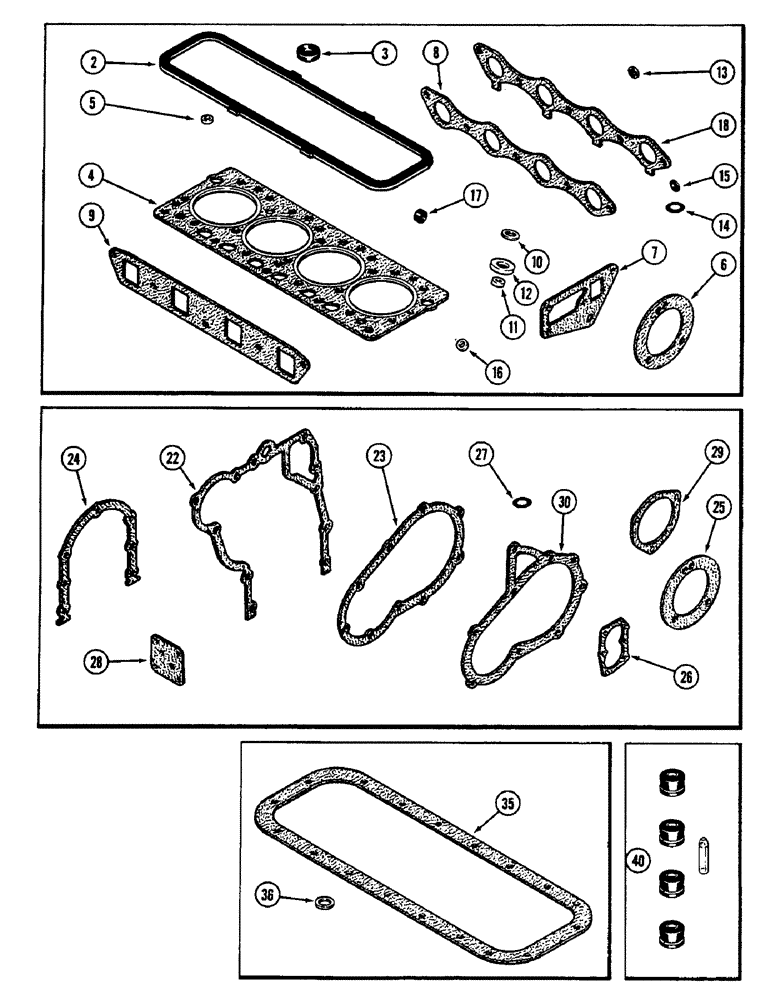

Запчасти Case 350B (044) - ENGINE GASKET KITS, 188 DIESEL ENGINE (01) - ENGINE

A155589

GASKET KIT

- valve grind (Replaces A143000), Includes: Ref. 2 - 17

1шт.

For complete engine overhaul order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

2

A43030

GASKET,3.05mm Thk

- valve cover, grind kit

1шт.

3

A142098

GROMMET

- valve cover studs (Rubber), grind kit

2шт.

4

A148745

CYLINDER HEAD GASKET

- cylinder head, valve grind kit

1шт.

5

G46851

SEAL

- valve stem (Rubber) (See ref. 40), grind kit

8шт.

6

A38083

GASKET

- water pump to body, valve grind kit

1шт.

7

A38084

GASKET,1.27mm Thk

- water pump body to cylinder head, valve grind kit

1шт.

8

G46872

MANIFOLD GASKET

- exhaust manifold, valve grind kit

1шт.

9

G46871

GASKET

- intake manifold, valve grind kit

1шт.

10

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - fuel injection lines to pump, valve grind kit

8шт.

11

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, injector nozzles, valve grind kit

4шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- seat, injector nozzles, valve grind kit

4шт.

13

A50694

DISC

WASHER - seal, manifold studs, valve grind kit

3шт.

14

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- water pump body, valve grind kit

1шт.

15

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 x 9/16 x 3/32" (10 x 14 x 2 mm) (Not used this application), valve grind kit

3шт.

16

G49068

GASKET

- (Not used this application), valve grind kit

4шт.

17

222-101

SLEEVE,3/16" Tube

- for (5 mm) (Not used this application), valve grind kit 3/16" Tube

4шт.

17

222-103

SLEEVE,5/16" Tube

(8 mm) (Not used this application), Valve grind kit 5/16" Tube

4шт.

18

A155137

GASKET

- exhaust manifold (With turbocharger only), valve grind kit

1шт.

A43198

GASKET

KIT - cylinder block, Includes: Ref. 22 - 30

1шт.

For complete engine overhaul order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

22

A51529

GASKET

- timing gear cover, cylinder block kit

1шт.

23

A39925

GASKET

- injection pump drive cover, cylinder block kit

1шт.

24

A39188

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

25

A38083

GASKET

- water pump, cylinder block kit

1шт.

26

G46852

GASKET

- oil pump cover, cylinder block kit

1шт.

27

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - water pump body to cover, cylinder block kit

1шт.

28

G46854

GASKET

- (Not used this application), cylinder block kit

1шт.

29

A30042

GASKET

- (Not used this application), cylinder block kit

1шт.

30

G46859

GASKET

- (Not used this application), cylinder block kit

1шт.

A44758

GASKET

KIT - oil pan, Includes: Ref. 35 and 36

1шт.

For complete engine overhaul order 1-A155589, 1-A43198 and 1-A44758 gasket kits.

1шт.

35

A51891

OIL PAN GASKET SET

- oil pan, kit

1шт.

36

A58608

GASKET

- drain plug, nylon, oil pan kit

1шт.

36

A34827

GASKET

- drain plug, copper, oil pan kit

1шт.

40

M20611

SEAL KIT

SEAL KIT - valves (Includes 4 seals and installation sleeve), oil pan kit

1шт.
