(094) - D52050 SHUTTLE OIL FILTER

Запчасти Case 350B (094) - D52050 SHUTTLE OIL FILTER (03) - TRANSMISSION

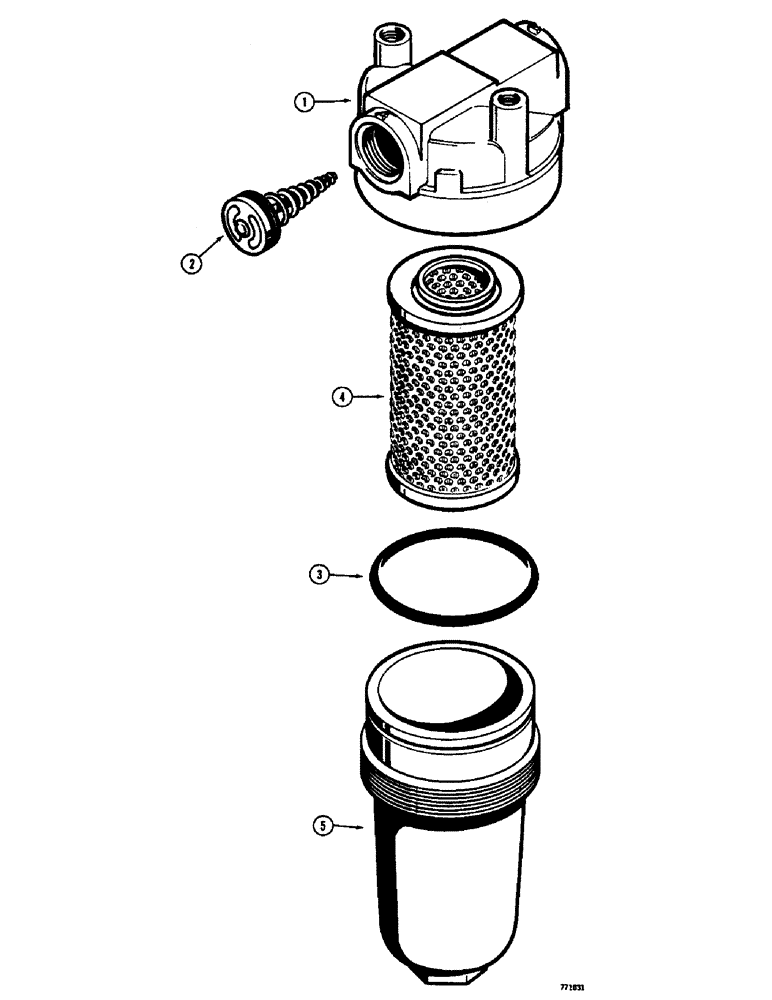

Схема запчастей Case 350B - (094) - D52050 SHUTTLE OIL FILTER (03) - TRANSMISSION
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

D52050

FILTER CARTRIDGE

FILTER ASSEMBLY - power shuttle hydraulic system, Includes: Ref. 1 - 5

1шт.

D61903

HEAD

ASSEMBLY - filter, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

D58199

VALVE

BYPASS VALVE - filter

1шт.

D51411

ELEMENT

KIT - filter element, Includes: Ref. 3 and 4

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- housing seal

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter, 25 micron

1шт.

5

D43799

HOUSING

- filter

1шт.
