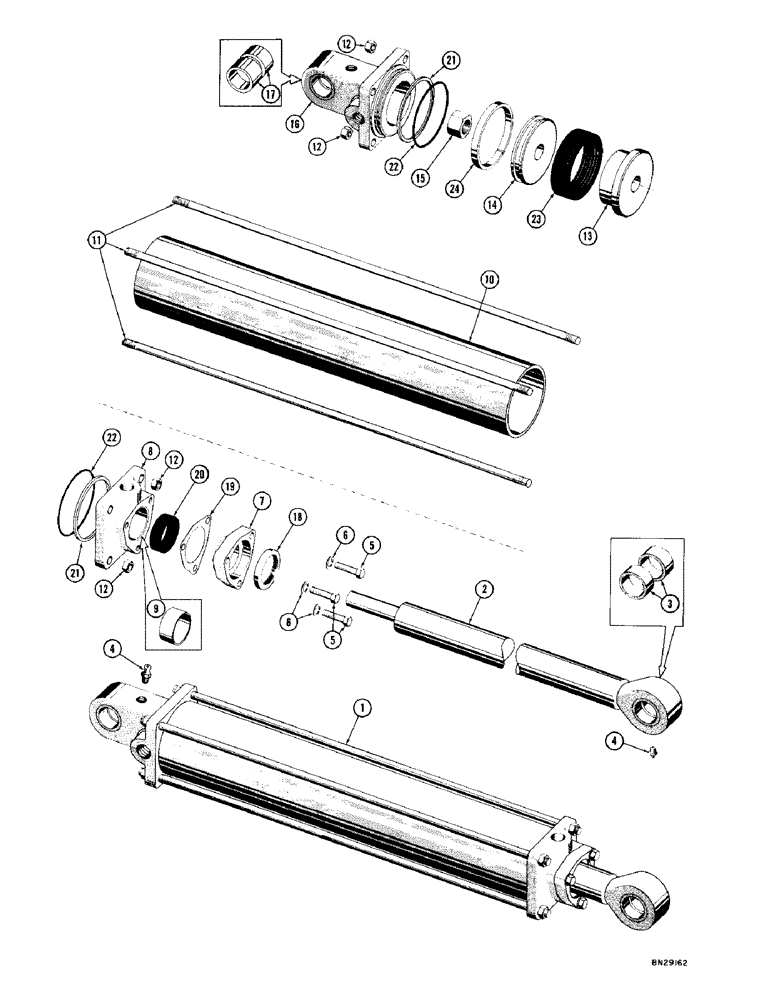

Запчасти Case 1000D (288) - R19755 AND R19756 LOADER DUMP CYLINDERS, USED BEFORE TRACTOR SN. 7106273 (07) - HYDRAULIC SYSTEM

1

R19755

CYLINDER - hydraulic, L.H. dump (5" I.D. x 22-3/16" stroke) Used before tractor serial no. 7106273 (If desired the cylinder can be serviced by 1 - D36685 and 1 - D36686 cylinder) See Figure 290 for breakdown

1шт.

R19756

CYLINDER - hydraulic, R.H. dump (5" I.D. x 22-3/16" stroke) Used before tractor serial no. 7106273 (If desired this cylinder can be serviced by 1 - D36685 and 1 - D36686 cylinder) See Figure 290 for breakdown

1шт.

2

75017

END YOKE & PISTON ROD ASS'Y - 2" O.D.

1шт.

3

72973

BUSHING

- rod (Early production) 1-1/2" I.D. x 1-7/8" O.D. x 3/4" thick

2шт.

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- rod (Late production) 1-1/2" I.D. x 2-1/8" O.D. x 7/8" thick)

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8" NPT

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(70458 & D30036 mounting) Hex, 1/2"-13 x 2", G5

3шт.

6

92-8

LOCK WASHER,1/2"

3шт.

7

70458

GASKET KIT

GLAND - packing (When stock is exhausted, use 1 - D30036 gland for service)

1шт.

D30036

SPARE PART

GLAND - packing

1шт.

8

R19264

CAP - cylinder end

1шт.

9

R17508

BUSHING

2шт.

10

73045

TUBE - cylinder

1шт.

11

R11662

ROD - tie

4шт.

12

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8" - 18 NF)

8шт.

13

R14110

BLOCK

- piston

1шт.

14

70461

RETAINER - packing

1шт.

15

48074

NUT

- lock (1-1/4" - 12 NF)

1шт.

16

R22235

END - cylinder (R19755 only)

1шт.

R22236

END - cylinder (R19756 only)

1шт.

17

72973

BUSHING

2шт.

D30146

KIT

- hydraulic cylinder packing, tie rod type

1шт.

18

70459

WIPER SEAL

- wiper

1шт.

19

70468

SHIM

- rod packing

1шт.

20

17598

PACKING

- rod

1шт.

21

R13074

WASHER

- backup

2шт.

22

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

23

R17198

PACKING

- piston

1шт.

24

70462

RING

- wear

1шт.
