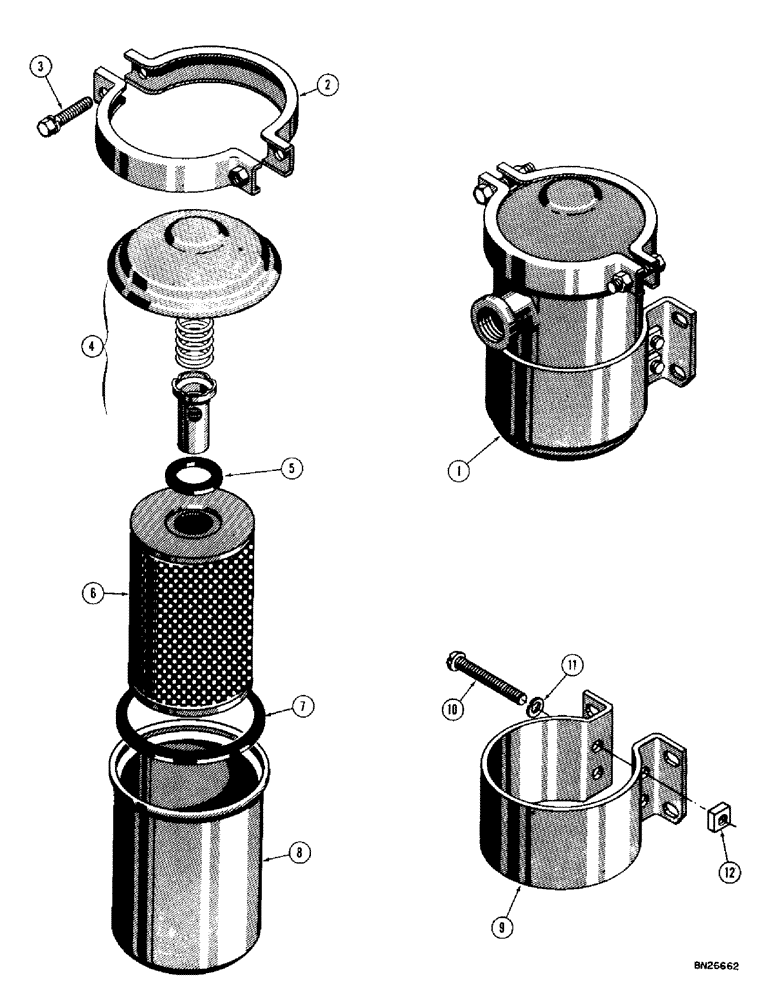

Запчасти Case 1000D (148) - D22660 TRANSMISSION OIL FILTER (03) - TRANSMISSION

1

D22660

AIR INTAKE TUBE

FILTER - transmission oil (Used before tractor serial no. 7104771) Order D31210 for service (See Figure 150)

1шт.

2

D22658

BOLT

CLAMP - oil filter

2шт.

3

D22659

BOLT (SPREADER)

BOLT AND LOCKWASHER ASSEMBLY - clamp (D22658 mounting)

2шт.

4

D22653

COVER

AND RELIEF VALVE ASSEMBLY - oil filter

1шт.

A13211

FILTER, ENGINE OIL

KIT - element and gasket

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - element

2шт.

6

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

7

A13208

GASKET

GASKET - cover

1шт.

8

D22654

SPARE PART

BODY - filter

1шт.

A13210

BRACKET - oil filter (D22660 mounting)

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET - oil filter

1шт.

10

75-540

SCREW

RHMS - 5/16" - 18 NC x 2-1/2" (A13210 mounting)

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

25-225

SQUARE NUT,Sq, 5/16"-24

- square (5/16" - 18 NC)

2шт.
