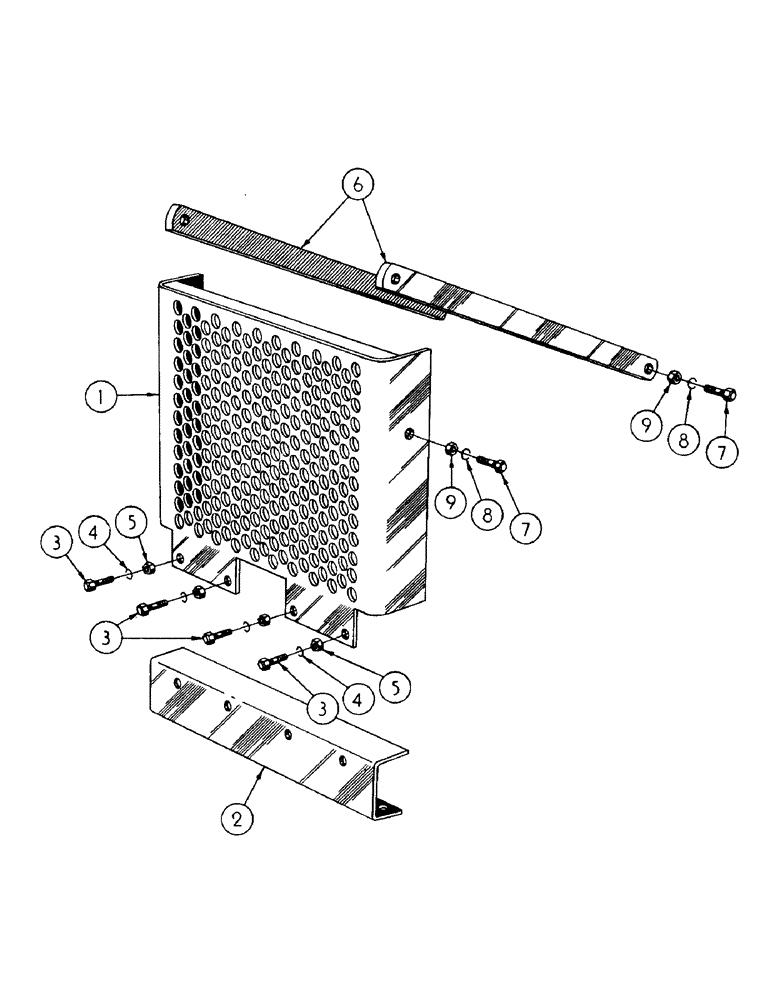

Запчасти Case 256 (030) - RADIATOR GUARD INSTALLATION (05) - UPPERSTRUCTURE CHASSIS

1

30988

RADIATOR GUARD ASS'Y

1шт.

2

31769

SPACER

FRONT CROSS MEMBER

1шт.

3

45707

FLANGE

HHCS 1/2 -20 NF x 1-1/4 (30988 & 31769 mt'g)

4шт.

4

48448

X

LOCKWASHER - med. sec.

4шт.

5

48104

PISTON

HEX NUT - reg. SF

4шт.

6

30995

BRACE

2шт.

7

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (30995 mt'g)

4шт.

8

48448

X

LOCKWASHER - med. sec.

4шт.

9

48104

PISTON

HEX NUT - reg. SF

4шт.
