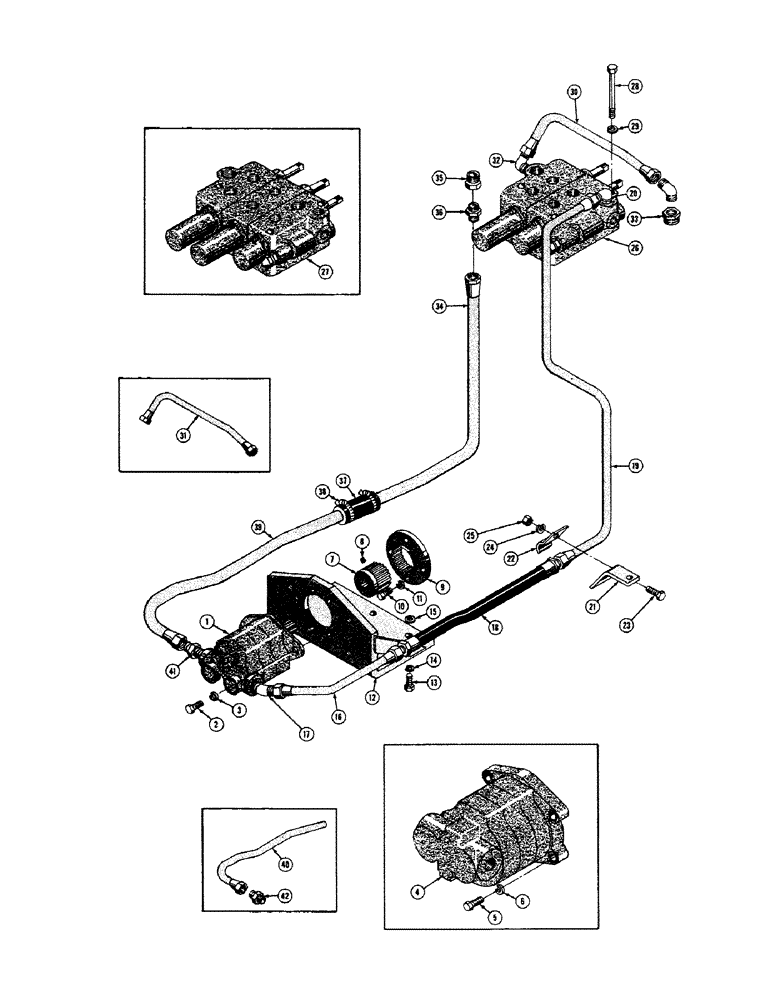

Запчасти Case 520 (100) - DOZER AND LOADER BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

31615

CAP

PUMP - hydraulic, 15 GPM (Used with dozers) (See figure 112 for breakdown)

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

D21319

PUMP - hydraulic, 19 GPM (Used with loader) (See figure 110 for breakdown)

1шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

R13925

COUPLING

- pump, male

1шт.

8

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16 - 18NC x 1/2

1шт.

9

R13926

COUPLING

- pump, female

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

11

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

30640

BRACKET - mounting, pump

1шт.

13

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

33496

BRAKE LINING

SHIM - .010 thick

1шт.

16

38536

TUBE,3" OD, 10.687, 3.187" Length

- pressure line, pump to valve (Front section)

1шт.

17

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree male, 3/4 NPT x 3/4 JIC

1шт.

18

38546

HOSE - pressure line, pump to valve (Center section)

1шт.

19

38532

LINE

TUBE - pressure line, pump to valve (Rear section) (Used on loaders and hydraulic dozers)

1шт.

38534

LINE

TUBE - pressure line, pump to valve (Rear section) (Used on mechanical dozers) (Not shown)

1шт.

20

218-495

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 3/4 JIC

1шт.

21

38530

LINE

BASE - tube clamp

1шт.

22

49789

CLAMP

- tube

1шт.

23

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

2шт.

24

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

26

16400

VALVE - hydraulic control (Used on hydraulic dozers and loaders without scarifier) (See figure 102 for breakdown)

1шт.

27

38876

VALVE - hydraulic control (Used on hudraulic dozer-scarifier model and loader-scarifier model) (See figure 102 for breakdown)

1шт.

16130

TUBE

VALVE - hydraulic control (Used on mechanical dozers only) (Not shown) (See figure 104 for breakdown)

1шт.

28

14-864

CAPSCREW,Hex, 1/2" - 20 x 4", Gr 5

HHCS - 1/2 - 20NF x 4

3шт.

29

92-8

LOCK WASHER,1/2"

3шт.

30

38398

TUBE - valve outlet to reservoir (Used with 1 or 2 spool valve)

1шт.

31

38396

TUBE - valve outlet to reservoir (Used with 3 spool valve)

1шт.

32

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree male, 3/4 NPT x 3/4 JIC

2шт.

33

221-69

BUSHING

- pipe, Serial Range: 1-1/4-3/4

1шт.

34

38851

SUPPORT

TUBE - return line, reservoir to pump (Rear section)

1шт.

35

221-70

BUSHING - pipe, Serial Range: 1-1/4-1

1шт.

36

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1 NPT x 1 JIC

1шт.

37

36467

HOSE - return line, reservoir to pump (Center section)

1шт.

38

49766

AUGER

CLAMP - hose

2шт.

39

38538

LINE

TUBE - return line, reservoir to pump (Front section) (Used with loader)

1шт.

40

38882

TUBE - return line, reservoir to pump (Front section) (Used with dozers)

1шт.

41

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 NPT x 1 JIC (Used with hydraulic dozers)

1шт.

42

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1NPT x 1 JIC (Used with loader)

1шт.
