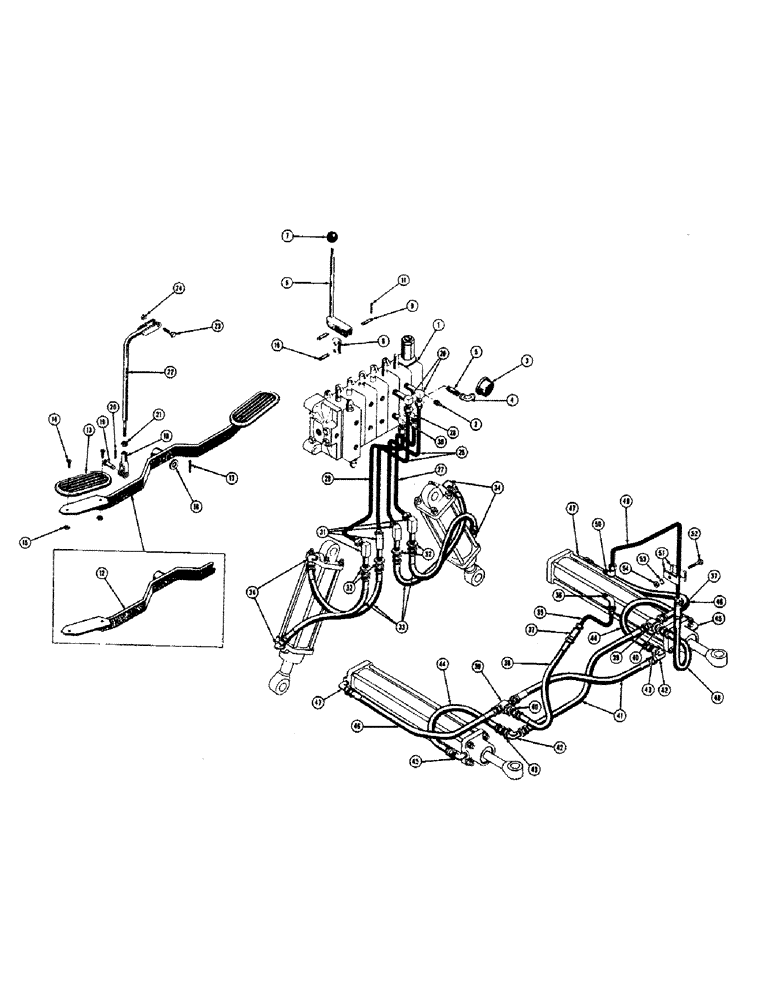

Запчасти Case 520 (172) - BACKHOE VALVE, SWING AND STABILIZER CYLINDER HYDRAULICS, BACKHOE VALVE AND CONTROLS (07) - HYDRAULIC SYSTEM

1

D23812

VALVE

- hydraulic control, backhoe (See figure 176 for breakdown)

1шт.

2

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, 3/4 NPT ext. sq. hd.

1шт.

3

35117

X

GAUGE - oil pressure (Optional)

1шт.

4

221-395

FITTING

ELBOW - reducing pipe, 3/4 NPT x 1/4 NPT

1шт.

5

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - close pipe, 3/4 NPT

1шт.

6

35159

LEVER - valve (Dipper arm and bucket control - 9-3/4")

2шт.

35160

WASHER

LEVER - valve (Stabilizer control - 8-1/2")

2шт.

35382

LEVER - valve (Boom control - 11-1/4")

1шт.

7

70213

KNOB

- control lever

5шт.

8

35161

LINK - mounting, valve lever

5шт.

9

35173

PIN

- yoke, lever to link (Also, Serial Range: lever-valve)

10шт.

10

35172

PIN - yoke, Serial Range: link-valve

5шт.

11

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

30шт.

12

35266

BAR - control, swing cylinder

1шт.

13

35253

NUT

PEDAL - rubber, swing control bar

2шт.

14

74-412

MACHINE SCREW - flat hd., 1/4 - 28NF x 3/4

4шт.

15

25-114

NUT,1/4"-28, G5

- hex. (1/4 - 28NF)

4шт.

16

195-45

WASHER,3/4"

1шт.

17

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

18

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjusting, swing cylinder control rod

1шт.

19

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, (Swing cylinder control rod) 3/8" x 1.060"

1шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

21

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8 - 24NF)

1шт.

22

34932

ROD - swing control

1шт.

23

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

HHCS - 3/8 - 24NF x 1-3/4

1шт.

24

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (3/8 - 24NF)

1шт.

25

35166

KEY

TUBE - control valve to stabilizer cylinder top port, hydraulics

2шт.

26

218-497

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, extra long, 1/2 NPT x 1/2 JIC, stabilizer hydraulics

2шт.

27

35180

PIPE FITTING

TUBE - valve to RH stabilizer cylinder bottom port, hydraulics

1шт.

28

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 1/2 JIC, stabilizer hydraulics

1шт.

29

35182

TUBE - valve to LH stabilizer cylinder bottom port, hydraulics

1шт.

30

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 1/2 JIC, stabilizer hydraulics

1шт.

31

50881

ELBOW - special 90 degree male, stabilizer hydraulics

4шт.

32

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16NF), stablizer hydraulics

4шт.

33

36210

HOSE

- special elbow to stabilizer cylinder ports, hydraulics

4шт.

34

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 1/2 JIC, stabilizer hydraulics

4шт.

35

35051

SPRING CUP

TUBE - valve to LH bulkhead tee, swing cylinder hydraulics

1шт.

36

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 1/2 JIC, swing cylinder hydraulics

1шт.

37

221-328

X

COUPLING - pipe, 3/8 NPT, swing cylinder hydraulics

2шт.

38

35214

BELT, TRANSMISSION

HOSE - valve tube to LH bulkhead tee, swing cylinder hydraulics

1шт.

39

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, 1/2 JIC, swing cylinder hydraulics

2шт.

40

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16NF), swing cylinder hydraulics

2шт.

41

35221

SPINDLE

HOSE - LH bulkhead tee to RH bulkhead elbow (Also RH bulkhead tee to LH bulkhead elbow), swing cylinder hydraulics

2шт.

42

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

(1/2 JIC), Swing cylinder hydraulics 90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

2шт.

43

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex. jam (3/4 - 16NF), swing cylinder hydraulics

2шт.

44

35223

PLATE

HOSE - bulkhead elbow to swing cylinder rear ports, hydraulics

2шт.

45

D20167

X

ELBOW - special flow retrictor, (Swing cylinder rear port), hydraulics

2шт.

46

36445

HOSE - bulkhead tee to swing cylinder front ports, hydraulics

2шт.

47

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 1/2 JIC, swing cylinder hydraulics

2шт.

48

36250

SPRING

HOSE - valve tube to bulkhead tee, RH, swing cylinder hydraulics

1шт.

49

D20263

TUBE - valve to RH bulkhead tee, swing cylinder hydraulics

1шт.

50

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree male, 1/2 NPT x 1/2 JIC, swing cylinder hydraulics

1шт.

51

32978

PLATE ASSY.

PLATE - clamp, tube, swing cylinder hydraulics

2шт.

52

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS - 5/16 - 24NF x 1-1/2, swing cylinder hydraulics

1шт.

53

92-5

LOCK WASHER,5/16"

WASHER, LOCK, , swing cylinder hydraulics 5/16"

1шт.

54

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), swing cylinder hydraulics

1шт.
