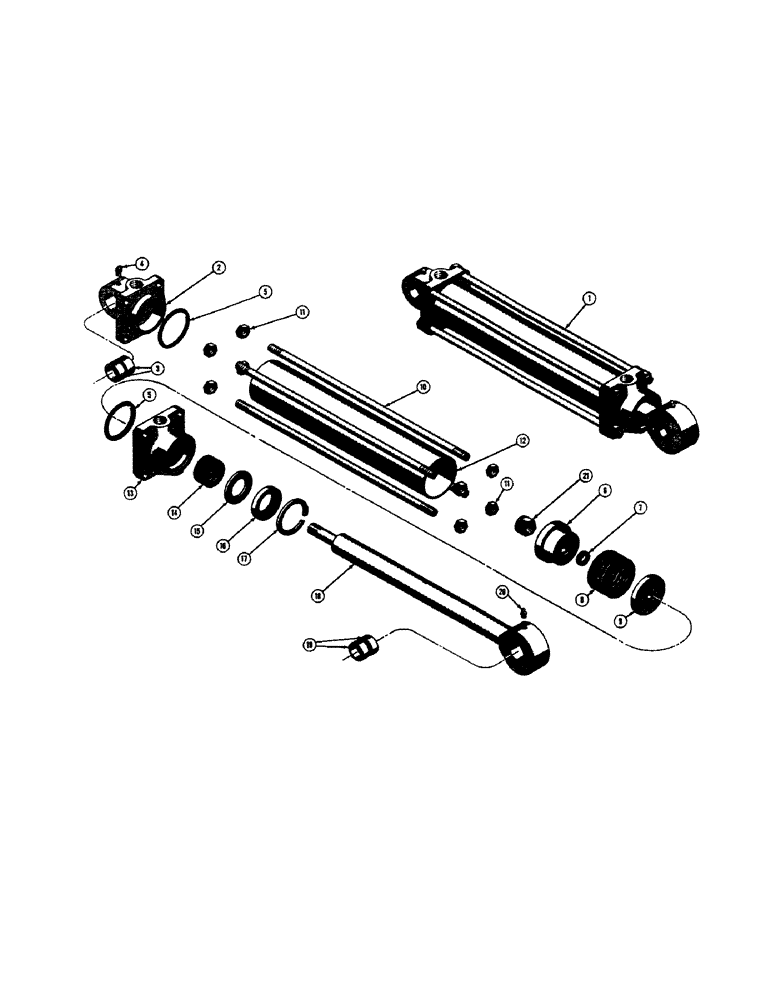

Запчасти Case 520 (182) - BACKHOE HYDRAULIC BOOM AND DIPPER ARM CYLINDERS (07) - HYDRAULIC SYSTEM

1

D23761

CYLINDER - boom and dipper arm, hydraulic

1шт.

2

D20037

END - cylinder

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

6

D23737

PISTON - cylinder

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, piston rod

1шт.

8

31526

PACKING

- piston

1шт.

9

31519

LOCKING PLATE

WASHER - piston packing

1шт.

10

34885

ROD - tie

4шт.

11

131-154

LOCK NUT,5/8"-18, GA

NUT - lock (5/8 - 18NF)

8шт.

12

34884

CABLE PULLING GRIP,3.995" ID, 4.387" OD, 38.447" Length

TUBE - cylinder

1шт.

13

73348

CAP - end, cylinder

1шт.

14

17598

PACKING

- rod

1шт.

15

31539

WASHER

- packing, piston rod

1шт.

16

31525

WIPER SEAL

- wiper, piston rod

1шт.

17

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

18

D20035

ROD - piston

1шт.

19

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston yoke

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

21

D23688

X

NUT - lock (1 - 14NF)

1шт.

1

D23774

CYLINDER - dump, hydraulic, backhoe

1шт.

2

D20054

END - cylinder, backhoe hydraulic dump

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end, backhoe hydraulic dump

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8, backhoe hydraulic dump cylinder

1шт.

NPT (Lincoln #5000)

1шт.

5

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring, backhoe hydraulic dump cylinder

2шт.

6

D23736

PISTON - cylinder, backhoe hydraulic dump

1шт.

7

A7632

SEAL - "O" ring, piston rod, backhoe hydraulic dump cylinder

1шт.

8

17578

PACKING

- piston, backhoe hydraulic dump cylinder

1шт.

9

NLS

NO LONGER SERVICED

WASHER - piston packing, backhoe hydraulic dump cylinder

1шт.

10

30569

ROD

- tie, backhoe hydraulic dump cylinder

4шт.

11

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF), backhoe hydraulic dump cylinder

8шт.

12

30570

DRAWBAR

TUBE - cylinder, backhoe hydraulic dump

1шт.

13

30567

FLANGE

CAP - end, cylinder, backhoe hydraulic dump

1шт.

14

30568

PACKING

- rod, piston, backhoe hydraulic dump cylinder

1шт.

15

70741

X

WASHER - packing, piston rod, backhoe hydraulic dump cylinder

1шт.

16

30574

WIPER SEAL

SEAL - wiper, piston rod, backhoe hydraulic dump cylinder

1шт.

17

70742

WASHER

2.50", Int, #250, seal, piston rod, backhoe hydraulic dump cylinder

1шт.

18

D20036

ROD

- piston, backhoe hydraulic dump cylinder

1шт.

19

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston yoke, backhoe hydraulic dump cylinder

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8, backhoe hydraulic dump cylinder

1шт.

NPT (Lincoln #5000)

1шт.

21

D23688

X

NUT - lock (1 - 14 NF)

1шт.
