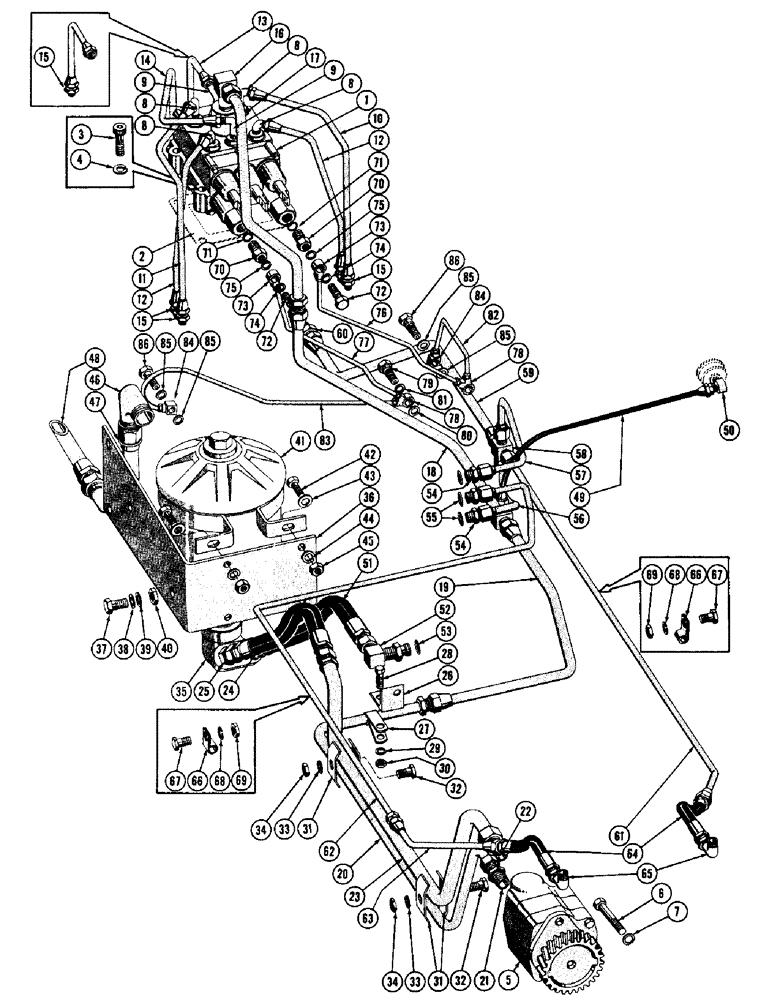

Запчасти Case 600 (100) - HYDRAULIC SYSTEM, PUMP, VALVE, TUBING, BRAKE LINES, FITTINGS (USED FROM S/N 7060799) (07) - HYDRAULIC SYSTEM

1

35660

BEARING

VALVE ASSY. - trans. control (Used up to S/N 7060816) (See figure #290 for breakdown), hydraulic system

1шт.

74918

SPARE PART VALVE ASSY. - trans. control (Used from S/N 7060816) (See figure #290 for breakdown), hydraulic system

1шт.

2

REF

INSTRUCTION

GASKET - valve mt'g. (See page #64, ref. #49), transmission hydraulic system

1шт.

3

62-632

SPARE PART 3/8-24 NF x 2 (Valve mt'g.) (47552), transmission hydraulic system

4шт.

4

92-6

LOCK WASHER,3/8"

(47552), transmission hydraulic system

4шт.

5

33153

HYDRAULIC PUMP

ASSY. (See figure #280 for breakdown), transmission system

1шт.

6

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

(33153 mt'g.) (45066), transmission hydraulic system

1шт.

7

92-6

LOCK WASHER,3/8"

(48446), transmission hydraulic system

1шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106), transmission hydraulic system

4шт.

9

50554

X

ELBOW - 90 degree extra long male, 3/8 JIC to 1/4 NP, transmission hydraulic system

2шт.

10

74446

GEAR,0.375" OD, 8.937" Length

TUBE ASSY. - valve to transmission hydraulic system

1шт.

11

74444

TUBE ASSY. - valve to transmission hydraulic system

1шт.

12

74440

TUBE ASSY. - valve to transmission hydraulic system

2шт.

13

38097

SPARE PART

TUBE ASSY. - valve to transmission hydraulic system

1шт.

14

38095

HUB

TUBE ASSY. - valve to transmission hydraulic system

1шт.

15

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50016), transmission hydraulic system

6шт.

16

218-499

SPARE PART 90 degree long male, 5/8 JIC to 1/2 NP (50556), transmission hydraulic system

1шт.

17

74430

TUBE ASSY. - valve to pump, transmission hydraulic system

1шт.

18

74442

TUBE ASSY. - valve to pump, transmission hydraulic system

1шт.

19

74661

TUBE ASSY. - valve to pump, transmission hydraulic system

1шт.

20

74900

TUBE ASSY. - valve to pump, transmission hydraulic system

1шт.

21

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

Male, 3/4 JIC to 3/4 NP (50026), transmission hydraulic system

1шт.

22

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

Male, 5/8 JIC to 3/4 NP (50026), transmission hydraulic system

1шт.

23

74663

TUBE ASSY. - pump to oil filter, transmission hydraulic system

1шт.

24

74801

HOSE ASSY. - pump to oil filter, transmissin hydraulic system

1шт.

25

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

Male, 3/4 JIC to 1/2 NP (50027), transmission hydraulic system

1шт.

26

74629

BRACKET - tube support, transmission hydraulic system

1шт.

27

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Tube (74663 mt'g.), transmission hydraulic system

1шт.

28

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(49885 mt'g.) (45654), transmission hydraulic system

1шт.

29

92-6

LOCK WASHER,3/8"

(48446), transmission hydraulic system

1шт.

30

25-116

NUT,Hex, 3/8"-24, G5

(48102), transmission hydraulic system

1шт.

31

32978

PLATE ASSY.

CLAMP - tube (74663 & 74900 mt'g.), transmission hydraulic system

4шт.

32

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

(32978 mt'g.) (45633), transmission hydraulic system

2шт.

33

92-5

LOCK WASHER,5/16"

(48445), transmission hydraulic system

2шт.

34

25-115

NUT,5/16"-24, G5

Reg. SF hex (48101), transmission hydraulic system

2шт.

35

34630

SPARE PART MANIFOLD, oil filter system

1шт.

36

34860

SPARE PART BRACKET - filter mt'g., oil system

1шт.

37

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(34860 mt'g.) (45760), oil filter system

3шт.

38

195-41

WASHER,5/8"

(48430), Oil filter system

3шт.

39

92-10

LOCK WASHER,5/8"

(48450), Oil filter system

3шт.

40

25-1110

NUT,5/8"-18, G5

Reg. SF hex (48106), oil filter system

3шт.

41

34634

SPARE PART FILTER ASSY. - hydraulic oil (See figure #104 for breakdown), system

1шт.

42

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

(34634 mt'g.) (45657), oil filter system

4шт.

43

195-25

WASHER,3/8"

(48426), oil filter system

4шт.

44

92-6

LOCK WASHER,3/8"

(48446), oil filter system

4шт.

45

25-116

NUT,Hex, 3/8"-24, G5

(48102), oil filter system

4шт.

46

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

Male, 1" JIC to 1 NP (50119), oil filter system

1шт.

47

35579

SPARE PART TUBE ASSY. - filter to transmission, oil system

1шт.

48

34640

SET SCREW,Hex Soc, M8 x 10, Cone Pt

EXTENSION ASSY. - snorkel tube, oil filter system

1шт.

49

33727

HOSE

ASSY. - tee to pressure gauge, torque converter hydraulic system

1шт.

50

222-632

ELBOW - 90 degree female, 1/4 SAE to 1/8 NP (50162), torque converter hydraulic system

1шт.

51

35577

SPARE PART HOSE ASSY. - filter to torque converter hydraulic system

1шт.

52

50872

SPARE PART ELBOW - 90 degree bulkhead, long, special, torque converter hydraulic system

1шт.

53

49401

X

O-RING SEAL - "O" ring, torque converter hydraulic system

1шт.

54

50871

X

HYD CONNECTOR CONNECTOR - special male, torque converter hydraulic system

3шт.

55

49400

X

O-RING SEAL - "O" ring, torque converter hydraulic system

3шт.

56

33415

SPARE PART TUBE ASSY. - tee to torque converter, bottom, hydraulic system

1шт.

57

33414

BRAKE LINING

TUBE ASSY. - tee to torque converter, top, hydraulic system

1шт.

58

218-665

TEE

5/8 JIC & 3/8 JIC (50000), torque converter hydraulic system

1шт.

59

33413

TUBE ASSY. - tee to transmission, torque converter hydraulic system

1шт.

60

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

Male, 5/8 JIC to 3/4 NP (50038), torque converter hydraulic system

1шт.

61

35953

KIT

TUBE ASSY. - tee to sump, torque converter hydraulic system

1шт.

62

33410

TUBE ASSY. - torque converter to pump, hydraulic system

1шт.

63

35951

WASHER

TUBE ASSY. - torque converter to sump, hydraulic system

1шт.

64

35955

NUT

ASSY. - to sump, torque converter hydraulic system

2шт.

65

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

Male, 3/8 JIC to 1/4 NP (50106), torque converter hydraulic system

2шт.

66

33449

CLAMP

Tube (33410 & 33953 mt'g.), torque converter hydraulic system

2шт.

67

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

(33449 mt'g.) (45657), torque converter hydraulic system

2шт.

68

92-6

LOCK WASHER,3/8"

(48446), torque converter hydraulic system

2шт.

69

25-116

NUT,Hex, 3/8"-24, G5

(48102), torque converter hydraulic system

2шт.

70

72125

ADAPTER

Brake tube, hydraulic system

2шт.

71

49399

X

SEAL - "O" ring, brake hydraulic system

2шт.

72

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake hydraulic system

2шт.

73

50861

FITTING

3/16 tube, brake hydraulic system

2шт.

74

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Inlet connection, brake hydraulic system

2шт.

75

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET - inlet connection, brake hydraulic system

2шт.

76

74436

TUBE ASSY. - valve to master cylinder, LH, brake hydraulic system

1шт.

77

74438

TUBE ASSY. - valve to master cylinder, RH, brake hydraulic system

1шт.

78

51200243

FITTING

Master cylinder, brake hydraulic system

2шт.

79

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection, brake hydraulic system

2шт.

80

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

GASKET - inlet connection, brake hydraulic system

2шт.

81

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

Inlet connection, brake hydraulic system

2шт.

82

NLS

NO LONGER SERVICED

TUBE ASSY. - master cylinder to brake, LH, hydraulic system

1шт.

83

74434

TUBE ASSY. - master cylinder to brake, RH hydraulic system

1шт.

84

33259

SPARE PART FITTING - brake hydraulic system

2шт.

85

33257

SPACER

GASKET - copper, brake hydraulic system

4шт.

86

33258

KNIFE

SPARE PART BOLT - brake hydraulic system

2шт.
