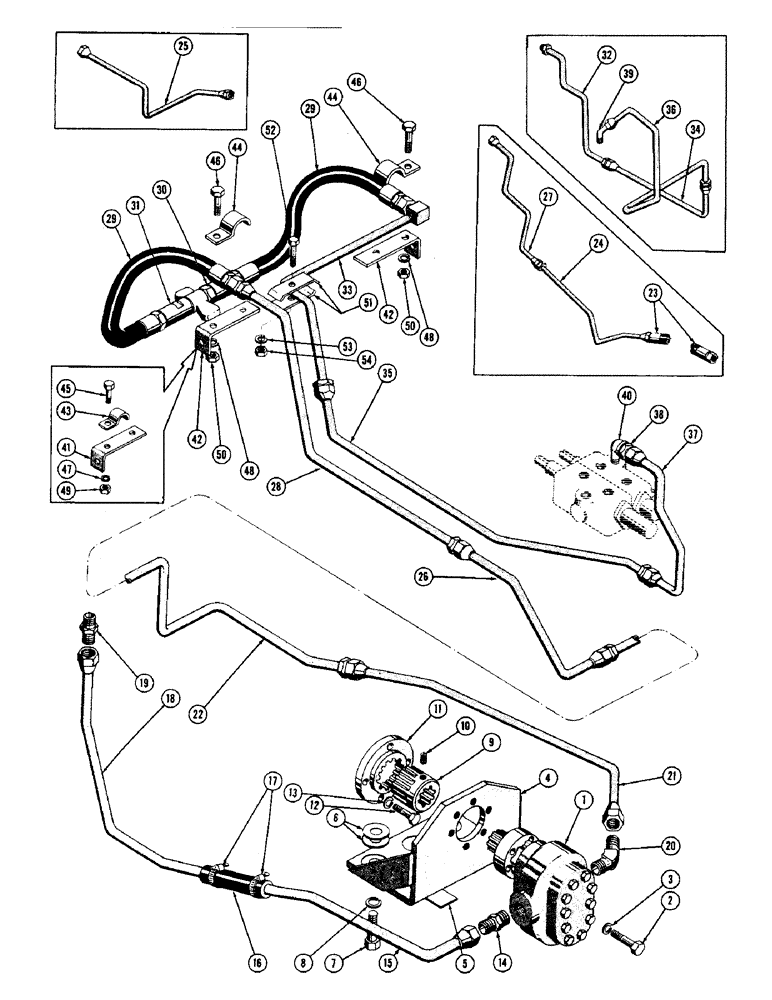

Запчасти Case 600 (256) - BACKHOE PRIMARY HYDRAULIC SYSTEM, PUMP, TUBES, HOSES, FITTINGS (USED FROM S/N 7060799) (07) - HYDRAULIC SYSTEM

1

74838

PUMP ASS'Y. - hydraulic (See figure #286 for breakdown)

1шт.

2

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(74838 mt'g.) (45060) Hex, 3/8"-16 x 2", G5

6шт.

3

92-6

LOCK WASHER,3/8"

(48446) 3/8"

6шт.

4

35046

SUPPORT

BRACKET ASS'Y. - pump mt'g.

1шт.

5

33394

SHIM - front engine mt'g.

1шт.

6

33496

BRAKE LINING

SHIM - .010 thick

1шт.

7

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(35046 mt'g.) (45158) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (45158) 5/8"

2шт.

9

30480

X

COUPLING - male

1шт.

10

83-58

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW - set, 5/16-18 NC x 1/2 (30480 mt'g.) (47306)

1шт.

11

10493

COUPLING FLANGE

COUPLING - female

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(10493 mt'g.) (45029) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

(48445) 5/16"

4шт.

14

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, 1" JIC to 1" NP (50029)

1шт.

15

33401

TUBE ASS'Y. -, Serial Range: pump-tank

1шт.

16

32798

HOSE

- low pressure

1шт.

17

49766

AUGER

CLAMP - hose

2шт.

18

39239

TUBE ASS'Y. - pump to tank (Used up to serial #7060789)

1шт.

33402

TUBE ASS'Y. - pump to tank (Used from serial #7060789 and up to serial #7061002)

1шт.

39239

TUBE ASS'Y. - pump to tank (Used from serial #7061002)

1шт.

19

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 1" JIC to 3/4 NP (50030)

1шт.

20

218-536

ELBOW,45 Degree, 1 1/1"6-12, 37 Degree x 3/4"-14, NPTF

- 45 degree male, 3/4 JIC to 3/4 NP (50146)

1шт.

21

35402

VALVE

TUBE ASS'Y. -, Serial Range: pump-disconnect

1шт.

22

R-10848

TUBE ASS'Y. - pump to disconnect (Used from serial #7061002)

1шт.

23

35055

PISTON

HOSE ASS'Y. - pump to disconnect (Used up to serial #7061002)

1шт.

24

39505

TUBE ASS'Y. - pump to disconnect (Used up to serial #7060789)

1шт.

25

74769

TUBE

ASS'Y. - pump to disconnect (Used from serial #7060789 and up to serial #7061002)

1шт.

26

R-10846

TUBE ASS'Y. - pump to disconnect (Used from serial #7061002)

1шт.

27

35396

BOX

TUBE ASS'Y. - pump to disconnect (Used up to serial #7061002)

1шт.

28

R-10844

TUBE ASS'Y. - pump to disconnect (Used from serial #7061002)

1шт.

29

NLS

NO LONGER SERVICED

HOSE ASS'Y., Serial Range: --disconnect

2шт.

30

36262

DISCONNECT - quick, male

1шт.

31

36263

DISCONNECT - quick, female

1шт.

32

35396

BOX

TUBE ASS'Y. - disconnect to valve (Used up to serial #7061002)

1шт.

33

R-10842

TUBE ASS'Y. - disconnect to valve (Used from serial #7061002)

1шт.

34

39506

TUBE ASS'Y. - disconnect to valve (Used up to serial #7061002)

1шт.

35

R-10840

TUBE ASS'Y. - disconnect to valve (Used from serial #7061002)

1шт.

36

33404

TUBE ASS'Y. - disconnect to valve (Used up to serial #7061002)

1шт.

37

R-10838

TUBE ASS'Y. - disconnect to valve (Used from serial #7061002)

1шт.

38

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male, 3/4 JIC to 3/4 NP (Used from serial #7061002)

1шт.

39

218-546

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 1/2"-14, NPTF

- 45 degree male, 3/4 JIC to 1/2 NP (Used up to serial #7061002)

1шт.

40

221-563

ELBOW - 90 degree street, 1/2 NP to 3/4 NP (Used from serial #7061002)

1шт.

41

33422

BRACKET - tube support (Used up to serial #7061002)

2шт.

42

R-10995

BRACKET - tube support (Used from serial #7061002)

2шт.

43

49789

CLAMP

- tube (Used up to serial #7061002)

2шт.

44

49787

RIGID TUBE

CLAMP - tube (Used from #7061002)

2шт.

45

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

HHCS 1/4-28 NF x 7/8 (49789 mt'g.) (Used up to serial #7061002)

2шт.

46

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(49787 mt'g.) (Used from S/N 7061002) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, (Used up to S/N 7061002) 1/4"

2шт.

48

92-5

LOCK WASHER,5/16"

(Used from serial #7061002) 5/16"

2шт.

49

25-114

NUT,1/4"-28, G5

- reg. SF hex (1/4-28 NF) (Used up to serial #7061002)

2шт.

50

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from serial #7061002)

2шт.

51

32978

PLATE ASSY.

CLAMP - tube (Used from serial #7061002)

2шт.

52

14-524

BOLT,Hex, 5/16" - 24 x 1-1/2", Gr 5

HHCS 5/16-24 NF x 1-1/2 (32978 mt'g.) (Used from serial #7061002)

1шт.

53

92-5

LOCK WASHER,5/16"

(Used from serial #7061002)Ò 5/16"

1шт.

54

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF) (Used from serial #7061002)

1шт.
