(136[2]) - TOOLS AND EQUIPMENT, PULL HOOK INSTALLATION (OPTIONAL EQUIPMENT)

Запчасти Case 600 (136[2]) - TOOLS AND EQUIPMENT, PULL HOOK INSTALLATION (OPTIONAL EQUIPMENT) (05) - UPPERSTRUCTURE CHASSIS

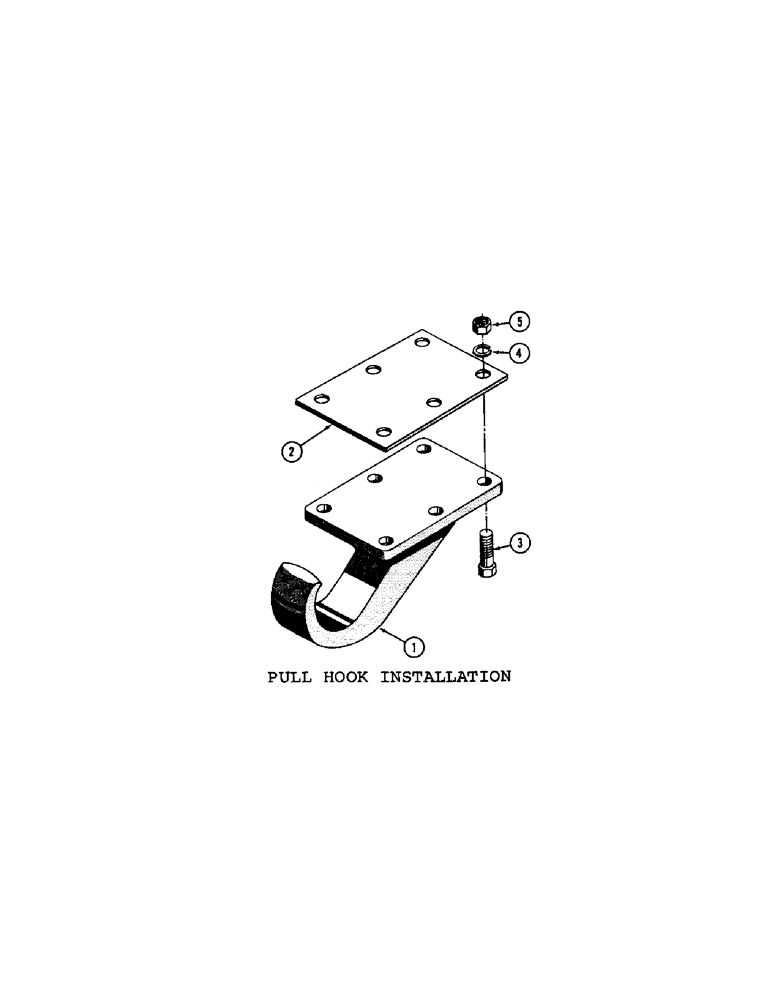

Схема запчастей Case 600 - (136[2]) - TOOLS AND EQUIPMENT, PULL HOOK INSTALLATION (OPTIONAL EQUIPMENT) (05) - UPPERSTRUCTURE CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NLS

NO LONGER SERVICED

HOOK INSTALLATION - pull

1шт.

1

10940

HOOK

- pull

1шт.

2

32123

LEVER

PLATE - doubler (Used up to serial # 7060799)

1шт.

3

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2-20 NF x 1-3/4 (10940 mt'g) (45709)

4шт.

4

92-8

LOCK WASHER,1/2"

(48448) 1/2"

4шт.

5

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2-20 NF) (48104)

4шт.

10940

HOOK

- pull, for use with front weight

1шт.
