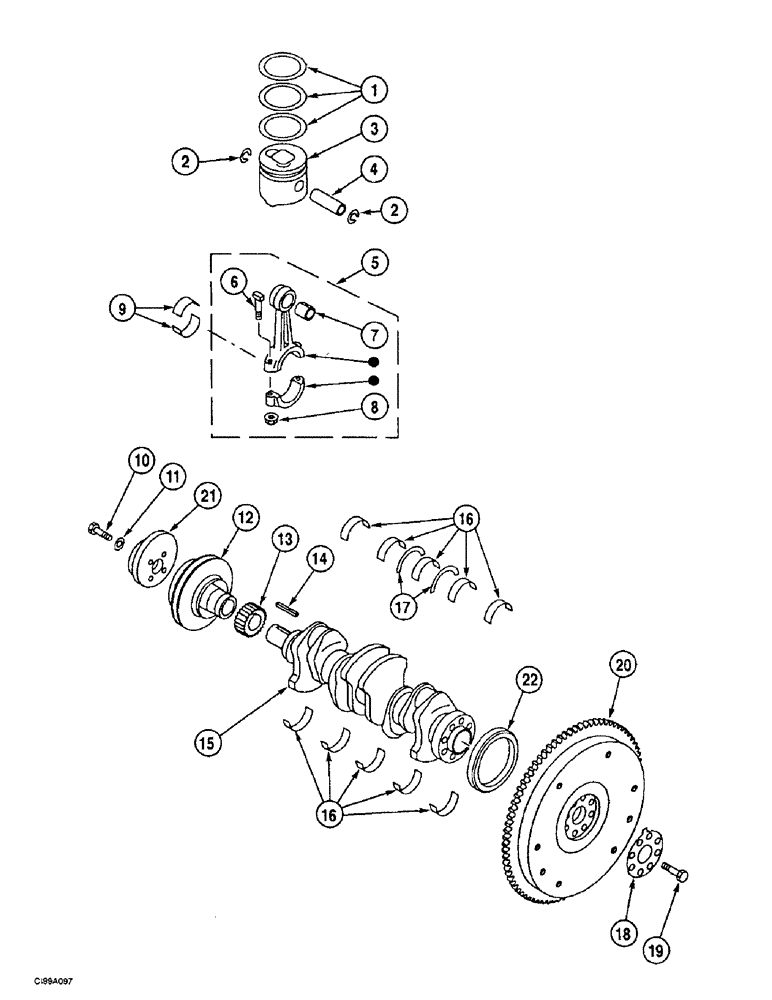

Запчасти Case 9007B (2-40) - PISTONS - CRANKSHAFT (02) - ENGINE

1

355125A1

PISTON RING SET

Piston

4шт.

2

355133A1

CIRCLIP

Ring, Snap

8шт.

3

355120A1

PISTON

AX

4шт.

3

355123A1

PISTON

CX

4шт.

4

355129A1

PISTON PIN

4шт.

5

355132A1

PITMAN ASSY.

Rod , Connecting, Consists Of Ref. Numbers : 6-8

4шт.

6

353955A1

BOLT

2шт.

7

353954A1

BUSHING

1шт.

8

353957A1

NUT

2шт.

9

355127A1

BEARING SET

BEARING, CON. ROD

4шт.

10

355117A1

BOLT

1шт.

11

355119A1

WASHER

1шт.

12

355116A1

PULLEY

1шт.

13

355097A1

GEAR

1шт.

14

355112A1

KEY

1шт.

15

355094A1

CRANKSHAFT

1шт.

16

355095A1

CRANKSHAFT BEARING

Gland

1шт.

17

355115A1

THRUST WASHER

1шт.

18

355113A1

PLATE

1шт.

19

355114A1

BOLT

8шт.

20

REF

INSTRUCTION

Flywheel, See Figure : 2-42

1шт.

21

REF

INSTRUCTION

Pulley, Water Pump See Figure : 2-14

1шт.

22

355280A1

OIL SEAL

Seal, Oil

1шт.
