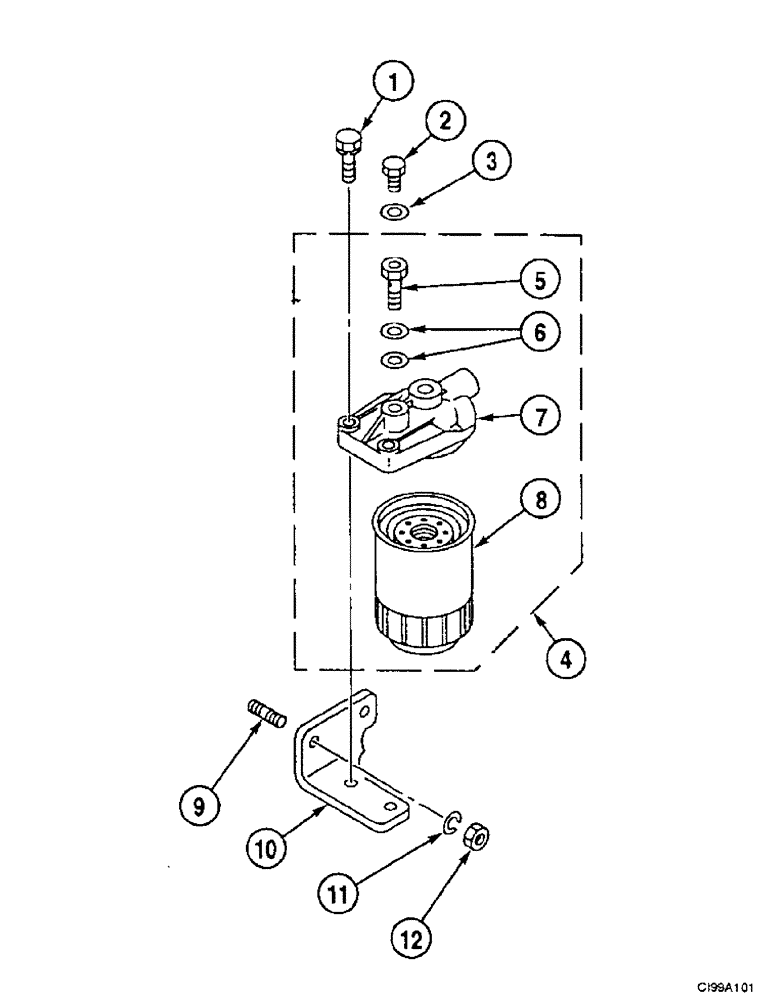

Запчасти Case 9007B (3-14) - FUEL FILTER (03) - FUEL SYSTEM

1

289001A1

BOLT

Screw, M10 x 32; 10.9

2шт.

2

355640A1

BOLT

1шт.

3

289808A1

GASKET

Seal

1шт.

4

289614A1

FILTER

Fuel, Consists Of Ref. No : 5-8

1шт.

5

289877A1

VALVE

Poppet

1шт.

6

289814A1

GASKET

Seal

2шт.

7

289476A1

COVER

Head, Filter

1шт.

8

289670A1

ELEMENT

Filter

1шт.

9

355262A1

STUD

M10 x 24

2шт.

10

355642A1

SUPPORT

1шт.

11

289783A1

LOCK WASHER

Lock

2шт.

12

289778A1

NUT

2шт.
