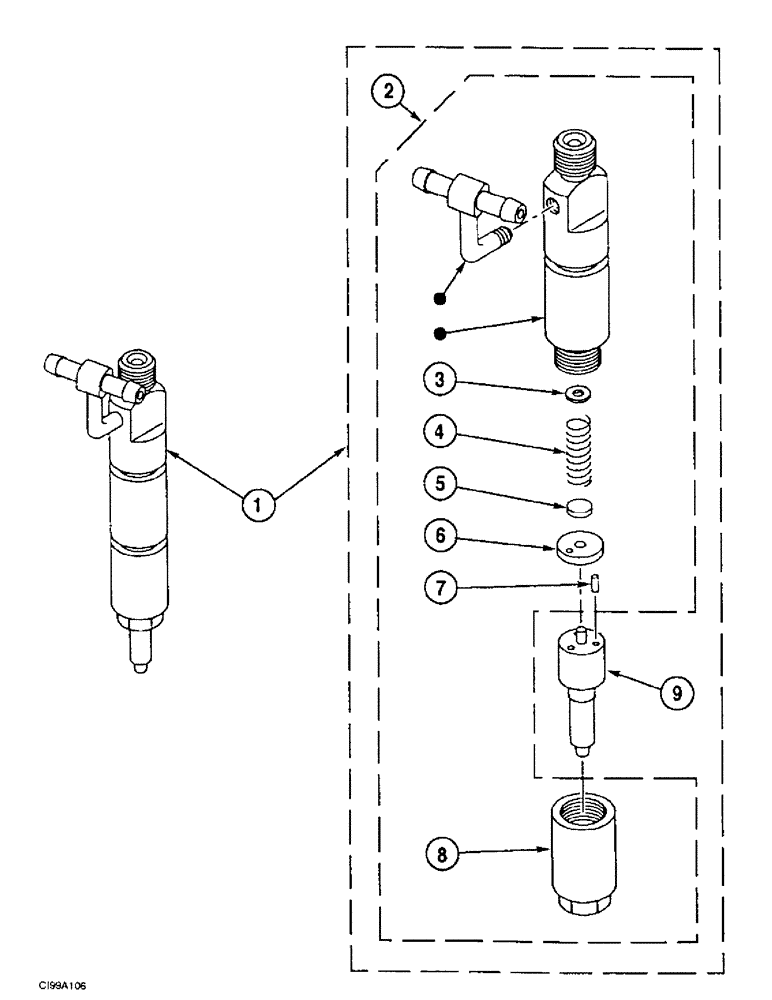

Запчасти Case 9007B (3-30) - INJECTOR (03) - FUEL SYSTEM

1

355457A1

INJECTOR ASSY.

Consists Of Ref. Numbers : 2, 9

1шт.

2

355445A1

NOZZLE INJECTION

Consists Of Ref. Numbers : 3 - 8

1шт.

3

355438A1

SHIM

0.100 mm (0.0039 in)

1шт.

3

355427A1

SHIM

0.200 mm (0.0079 in)

1шт.

3

355436A1

SHIM

0.300 mm (0.0118 in)

1шт.

3

355437A1

SHIM

0.400 mm (0.0157 in)

1шт.

3

355435A1

SHIM

0.500 mm (0.0197 in)

1шт.

3

355434A1

SHIM

0.510 mm (0.0201 in)

1шт.

3

355439A1

SHIM

0.520 mm (0.0205 in)

1шт.

3

355432A1

SHIM

0.530 mm (0.0209 in)

1шт.

3

355422A1

SHIM

0.540 mm (0.0213 in)

1шт.

3

355424A1

SHIM

0.550 mm (0.0217 in)

1шт.

3

355429A1

SHIM

0.560 mm (0.0220 in)

1шт.

3

355430A1

SHIM

0.570 mm (0.0224 in)

1шт.

3

355433A1

SHIM

0.580 mm (0.0228 in)

1шт.

3

355431A1

SHIM

0.590 mm (0.0232 in)

1шт.

3

356876A1

SHIM

0.600 mm (0.0236 in)

1шт.

4

355419A1

SPRING

1шт.

5

355418A1

SPRING SEAT

1шт.

6

355421A1

SPACER

2шт.

7

355420A1

DOWEL

Pin

1шт.

8

355417A1

NUT

1шт.

9

355446A1

NOZZLE CAP

Point

1шт.
