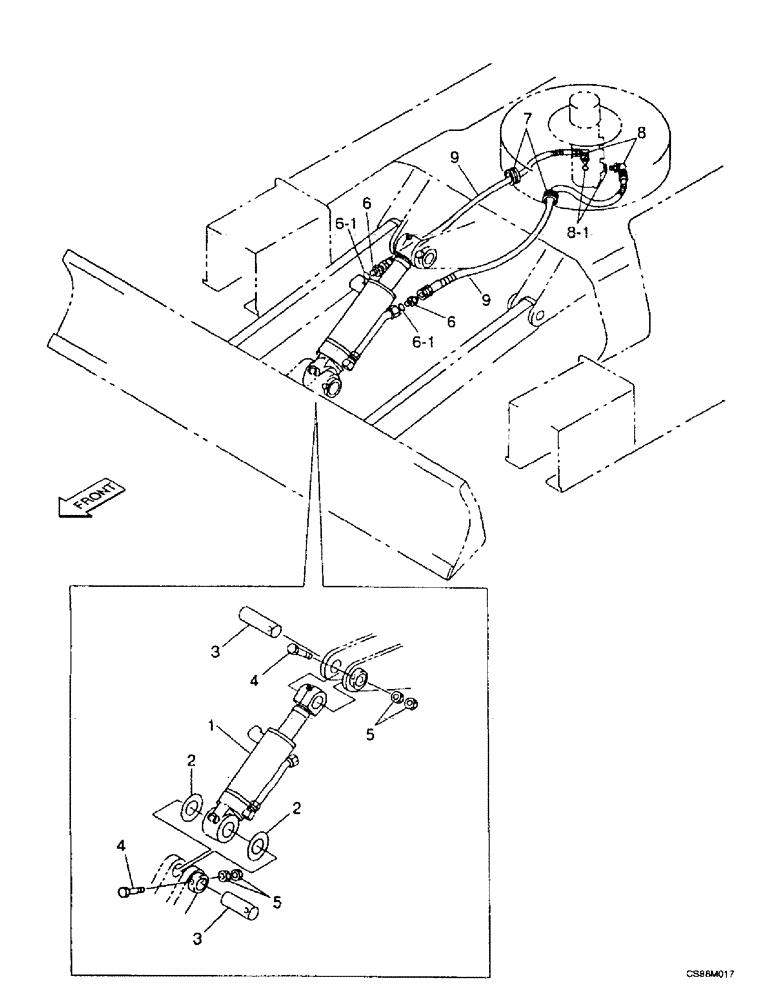

Запчасти Case 9007B (7-04) - HYDRAULIC CIRCUIT - DOZER BLADE (07) - BRAKES

1

167834A1

CYLINDER ASSY.

See Figure : 7-12

1шт.

2

166403A1

WASHER

4шт.

3

166391A1

PIN

2шт.

4

514-862

BOLT,Hex, M12 x 1.25 x 110mm, Cl 10.9

Screw M12 x 110; 10,9

2шт.

5

829-11412

NUT,M12 x 1.25, Cl 10

4шт.

6

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Union, Consists Of Ref. Number : 6A

2шт.

6a

154475A1

O-RING

1шт.

7

167909A1

GROMMET

2шт.

8

159367A1

ELBOW

2шт.

9

154475A1

O-RING

Consists Of Ref. Number : 9A

1шт.

9a

167835A1

HOSE

1320 mm (52 in)

2шт.
