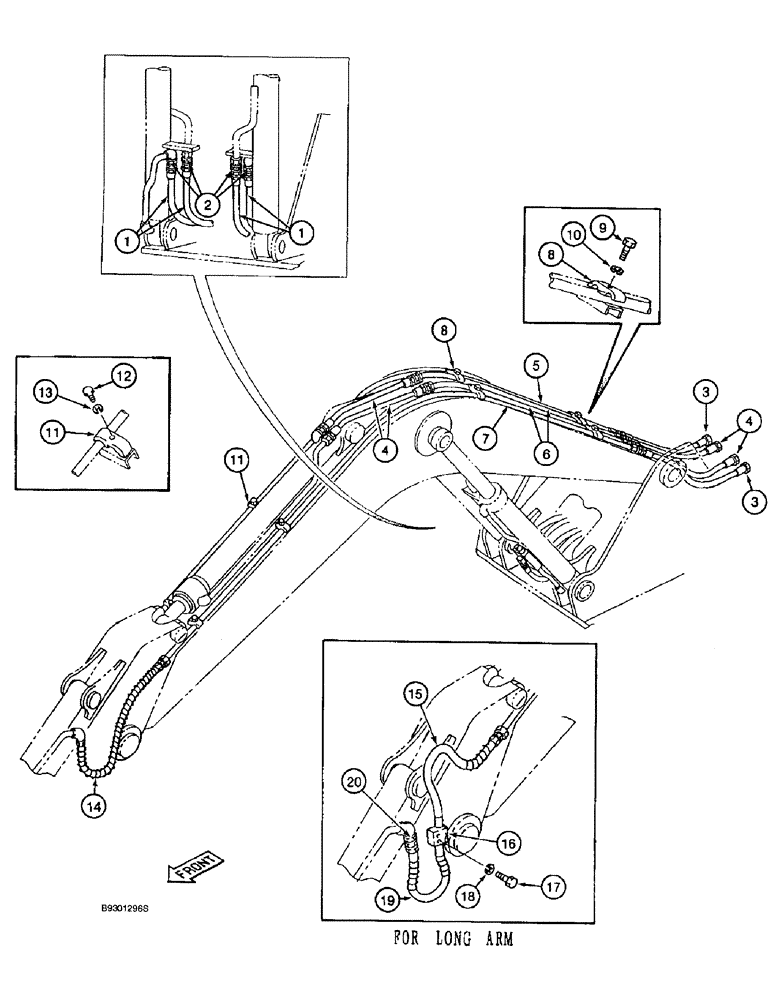

Запчасти Case 9010 (8-74) - BOOM, ARM & BUCKET HYD CIRCTS, BASE OF BOOM TO BUCKET CYLINDER, 8 2" ARM ONLY, 9 7 " ARM ONLY (08) - HYDRAULICS

1

150522A1

HYDRAULIC HOSE,730.00 mm

- At boom cylinder 730.00 mm

4шт.

2

150720A1

ADAPTER

straight, special

4шт.

3

150691A1

HYDRAULIC HOSE,950.00 mm

- At base of boom, Outer 950.00 mm

2шт.

4

150688A1

HYDRAULIC HOSE,950.00 mm

- At base of boom, Inner and at arm cylinder 950.00 mm

4шт.

5

150685A1

HYD TUBE

TUBE, right-hand, to bucket cylinder

1шт.

6

150682A1

TUBE,31.8 mm OD, 1992, 451.7 mm Length

to arm cylinder

2шт.

7

150686A1

HYD TUBE

TUBE left-hand, to bucket cylinder

1шт.

8

152533A1

SPECIAL CLAMP

CLAMP tube

4шт.

9

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

10

892-10012

LOCK WASHER,M12

WASHER lock, 12 mm

4шт.

11

151486A1

CLAMP BRACKET

CLAMP tube

4шт.

12

828-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

- hex, 12 - 1.75 x 60 mm, class 10.9

4шт.

13

892-10012

LOCK WASHER,M12

WASHER lock, 12 mm

4шт.

14

150533A1

HYDRAULIC HOSE,1250.00 mm

- At top of arm, Models with 8' 2" arm onlyA 1250.00 mm

2шт.

15

153699A1

HOSE ASSY.

HOSE, 41-3/8 inch (1050 mm) long at top of arm, models with 9' 7" arm only

2шт.

16

153697A1

CONNECTOR, ELEC

MANIFOLD hydraulic bucket cylinder, at top of arm, models with 9' 7" arm only

2шт.

17

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

- hex, 10 - 1.5 x 70 mm, class 10.9, Models with 9' 7" arm only

4шт.

18

892-10012

LOCK WASHER,M12

WASHER lock, 12 mm, Models with 9' 7" arm only

4шт.

19

150691A1

HYDRAULIC HOSE,950.00 mm

- To bucket cylinder 950.00 mm

2шт.

20

150720A1

ADAPTER

straight, special, models with 9' 7" arm only

2шт.
