(9-62) - HENSLEY BUCKT TOOTH OPT,FOR CENTRL FABRCTR/H & H BUCKTS,1-1/4" LIP ADAPTER,STD 122667A1,OPT 126932A1

Запчасти Case 9010 (9-62) - HENSLEY BUCKT TOOTH OPT,FOR CENTRL FABRCTR/H & H BUCKTS,1-1/4" LIP ADAPTER,STD 122667A1,OPT 126932A1 (09) - CHASSIS

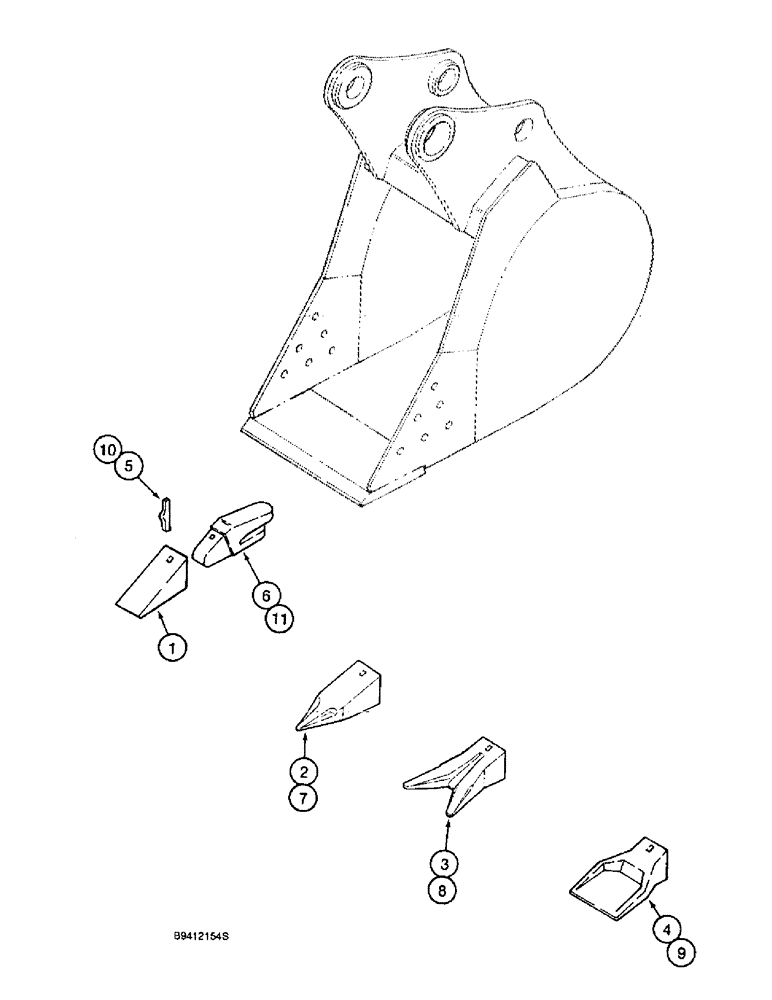

Схема запчастей Case 9010 - (9-62) - HENSLEY BUCKT TOOTH OPT,FOR CENTRL FABRCTR/H & H BUCKTS,1-1/4" LIP ADAPTER,STD 122667A1,OPT 126932A1 (09) - CHASSIS
8
2
3
4
10
7
6
5
11
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

122665A1

TOOTH

standard point

1шт.

2

126914A1

TOOTH

tiger optional

1шт.

3

126925A1

TOOTH

twin tiger optional

1шт.

4

126928A1

TOOTH

flared optional

1шт.

5

N14173

PIN,12.7mm OD x 76.2mm L

flex, point tooth to adapter, standard

1шт.

6

122667A1

BUCKET TOOTH SHANK

SHANK tooth standard

1шт.

7

126934A1

TOOTH

tiger point optional, w/ 1-1/4" lip adapter

1шт.

8

126936A1

TOOTH

twin tiger point optional, w/1-1/4" lip adapter

1шт.

9

126939A1

TOOTH

flared point optional, w/1-1/4" lip adapter

1шт.

10

122669A1

FASTENER

PIN flex, point tooth to adapter, optional, w/1-1/4" lip adapter

1шт.

11

126932A1

ADAPTER

SHANK tooth optional, w/1-1/4" lip adapter

1шт.

Выбрано товаров: 0
