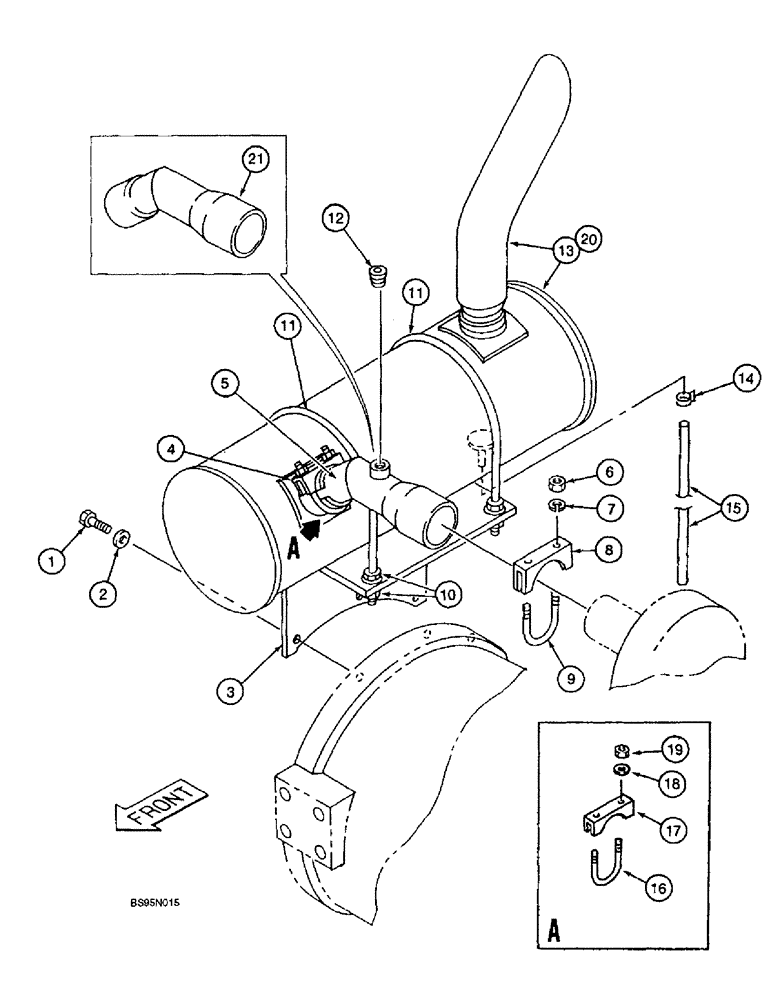

Запчасти Case 9010 (2-08) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

3шт.

2

150409A1

WASHER

flat, special 10.5 x 21 x 3.2 mm

3шт.

3

151334A1

SUPPORT

BRACKET muffler mounting

1шт.

4

151199A1

SPECIAL CLAMP

CLAMP muffler to exhaust pipe, 2-1/8 inch 54 mm, used with150947A1 muffler and 151338A1exhaust pipe

1шт.

5

151338A1

PIPE, EXHAUST SYSTEM

PIPE exhaust , side ported, 2 inch (50.8 mm) O.D. at muffler end

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

892-11010

LOCK WASHER,M10

2шт.

8

156695A1

SUPPORT

CLAMP saddle

1шт.

9

156694A1

U-BOLT,M10 x 86mm W x 80mm L

BOLT U-type

1шт.

10

150469A1

FLANGE NUT

hex flange, special

8шт.

11

151341A1

U-BOLT,M8 x 1.25 x 210mm W x 206.50mm L

BOLT U-type

2шт.

12

150990A1

PLUG

muffler, used with, Ref. 5, 151338A1 exhaust pipe

1шт.

13

150947A1

MUFFLER

exhaust 2 inch (50.8 mm) I.D. inlet, no longer available, order Ref. 16 - 21

1шт.

14

151367A1

COLLAR

CLAMP adjustable at muffler drain tube

1шт.

15

150657A1

TUBE

drain muffler

1шт.

16

157786A1

U-BOLT

BOLT U-type

1шт.

17

158238A1

CLAMP

saddle used with 158236A1 muffler and 158237A1 exhaust pipe

1шт.

18

153081A1

WASHER

flat, special

2шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

20

158236A1

MUFFLER

exhaust 2-1/8 inch (54 mm) I.D. inlet

1шт.

21

158237A1

PIPE, EXHAUST SYSTEM

PIPE exhaust not side ported, 2-1/8 inch (54 mm) O.D. at muffler end

1шт.
