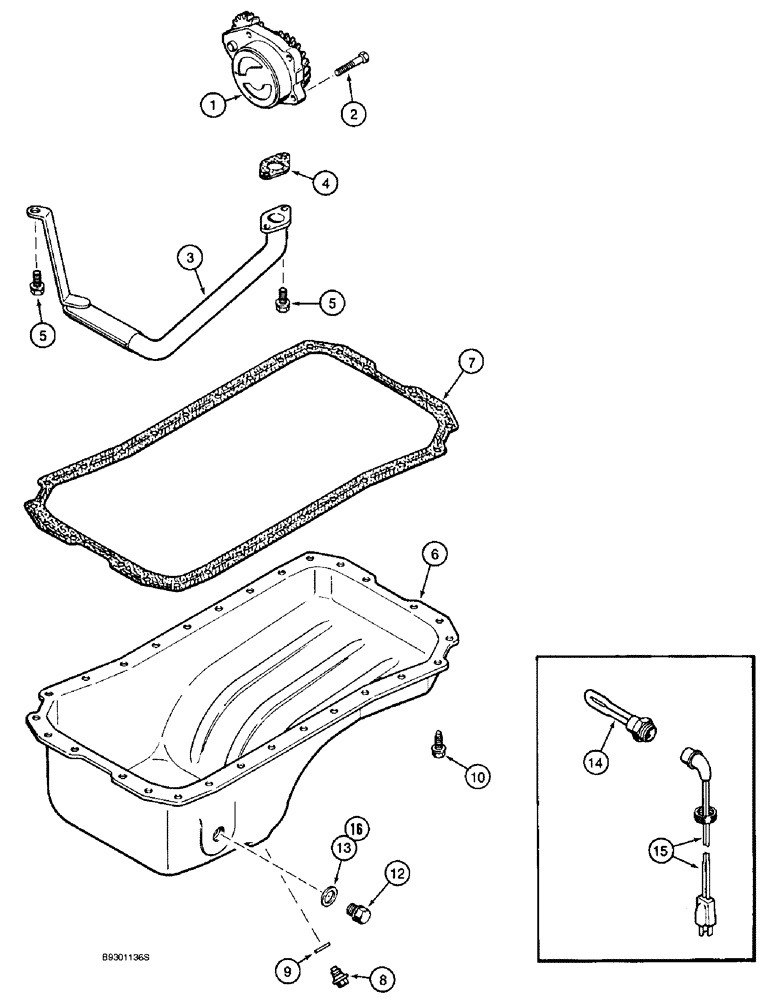

Запчасти Case 9010 (2-24) - OIL PUMP AND OIL PAN, 4T-390 ENGINE, ENGINE OIL HEATER (02) - ENGINE

1

J926202

PUMP, ENGINE OIL

PUMP oil, engine, new replaces J918211 and J924719 pump

1шт.

JR926202

PUMP

PUMP oil, remanufactured, North America only replaces JR918211 and JR924719 pump assembly

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only; Replaces JC918211 and JC924719

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J905206

TUBE,1" OD

TUBE suction, oil with screen

1шт.

4

J914383

GASKET

GASKET mounting, oil suction tube

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL PAN oil, engine engine

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan, order A77673 kit shown below

1шт.

8

J924147

PLUG,M18 x 1.5

PLUG hex magnetic, special, M18 replaces J911638 plug

1шт.

9

J920773

SEALING WASHER

WASHER sealing, drain plug

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm

28шт.

12

J924148

PLUG,M22 x 1.5

PLUG hex magnetic, special heater hole, replaces J904386 plug

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing, plug

1шт.

A77673

GASKET KIT

KIT gasket, oil pan

1шт.

A77490

KIT

KIT heater, engine oil Ref. 16, J902425 washer must be ordered also, Includes: Ref. 14 and 15

1шт.

14

J905113

CABLE

CABLE engine block heater, oil

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT heater, engine oil

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER sealing, plug, engine oil heater

1шт.
