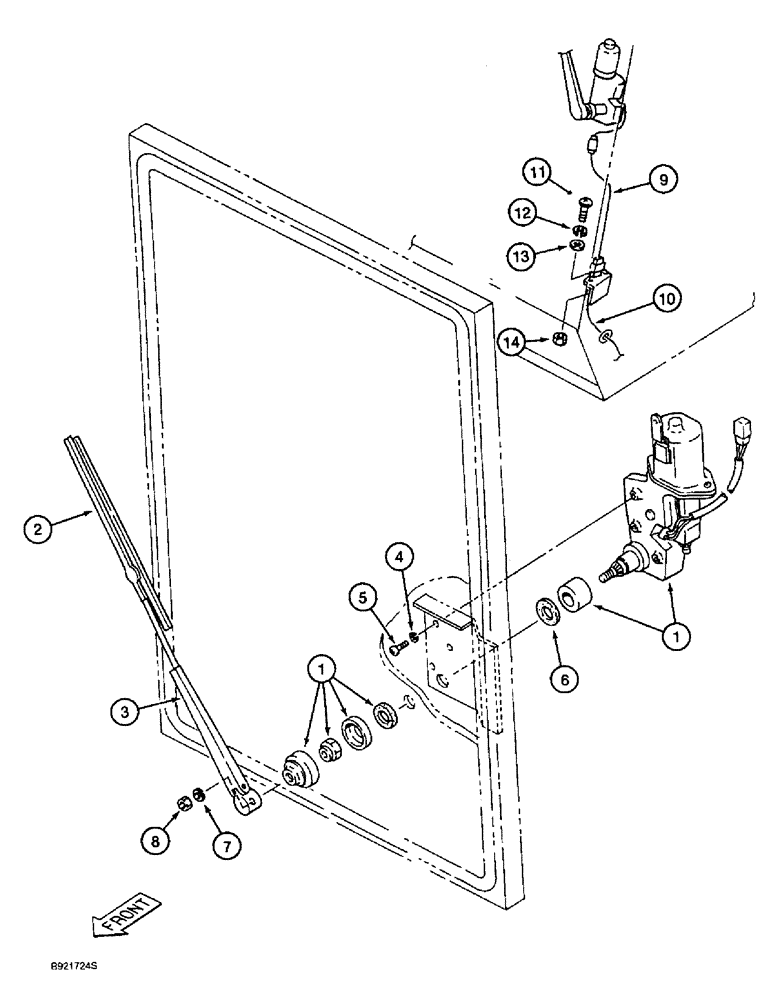

Запчасти Case 9010 (4-22) - WINDSHIELD WIPER (04) - ELECTRICAL SYSTEMS

1

150849A1

WIPER MOTOR

MOTOR windshield wiper

1шт.

All the little pieces that go on the shaft of this wiper motor can be purchased alone. See print for proper prime components.

1шт.

150967A1

WINDSHIELD WIPER

WIPER ASSEMBLY windshield, Includes: Ref. 2 and 3

1шт.

2

150851A1

WIPER BLADE

BLADE wiper

1шт.

3

150853A1

WIPER ARM

ARM wiper

1шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

5

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

3шт.

6

150944A1

PACKING

SEAL rubber washer

1шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

9

151316A1

HARNESS

wiper, 230 mm long upper

1шт.

10

151314A1

HARNESS

wiper, 700 mm long lower

1шт.

11

840-1312

SCREW,Pan, M3 x 121mm, Cl 4.8

machine, pan Phillips, 3 - 0.5 x 12 mm

2шт.

12

892-11003

LOCK WASHER,M3

WASHER lock, 3 mm

2шт.

13

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

Flat (3.2 x 7 x 0.5 mm) M3

2шт.

14

824-1403

NUT,M3, Cl 5

2шт.
