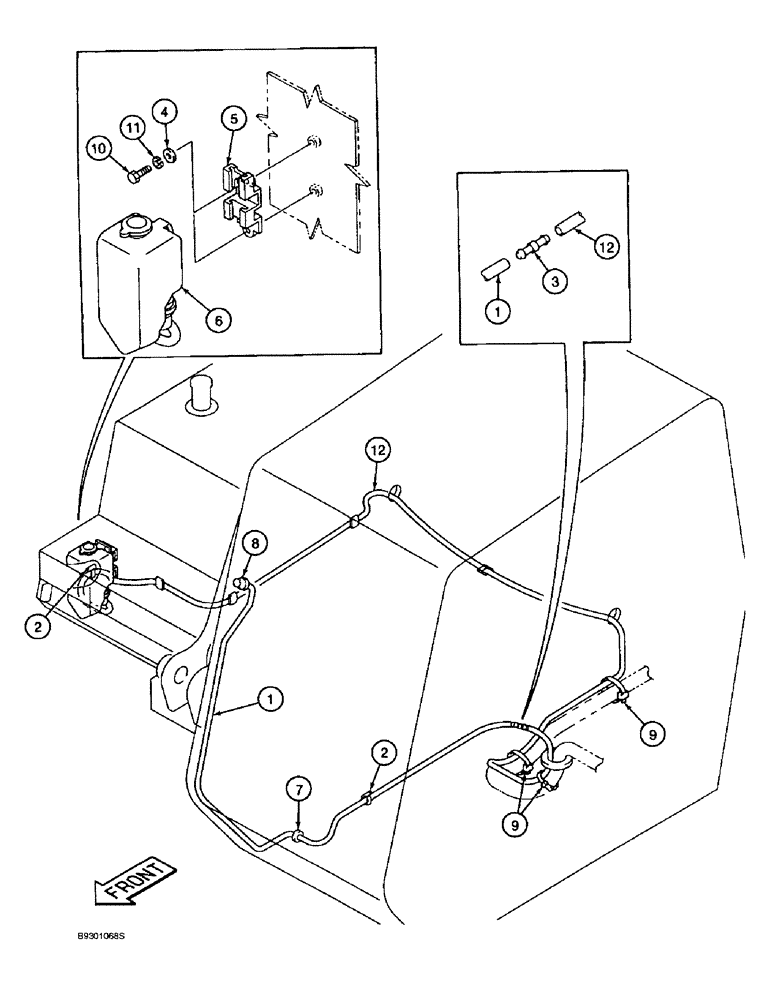

Запчасти Case 9010 (4-24) - WINDSHIELD WASHER (04) - ELECTRICAL SYSTEMS

1

152827A1

LARGE HOSE,4 mm ID, 7 mm OD, 2500 mm Length

TUBE connector to nozzle

1шт.

2

150712A1

CLIP

2шт.

3

152824A1

ADAPTER

CONNECTOR special

1шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

151377A1

HANGER

BRACKET reservoir

1шт.

6

150610A1

RESERVOIR

windshield washer fluid

1шт.

7

152841A1

GROMMET

rubber

1шт.

8

152688A1

NOZZLE INJECTION

NOZZLE windshield washer

1шт.

9

150071A1

MOUNTING CLIP

STRAP tie 365 mm long

1шт.

10

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

hex, full threads 6 - 1.0 x 12 mm, class 10.9

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

12

152831A1

PLASTIC-RUBBER TUBE,4 mm ID, 7 mm OD, 4000 mm Length

TUBE windshield washer, nozzle to connector

1шт.
