(6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR

Запчасти Case 9010 (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

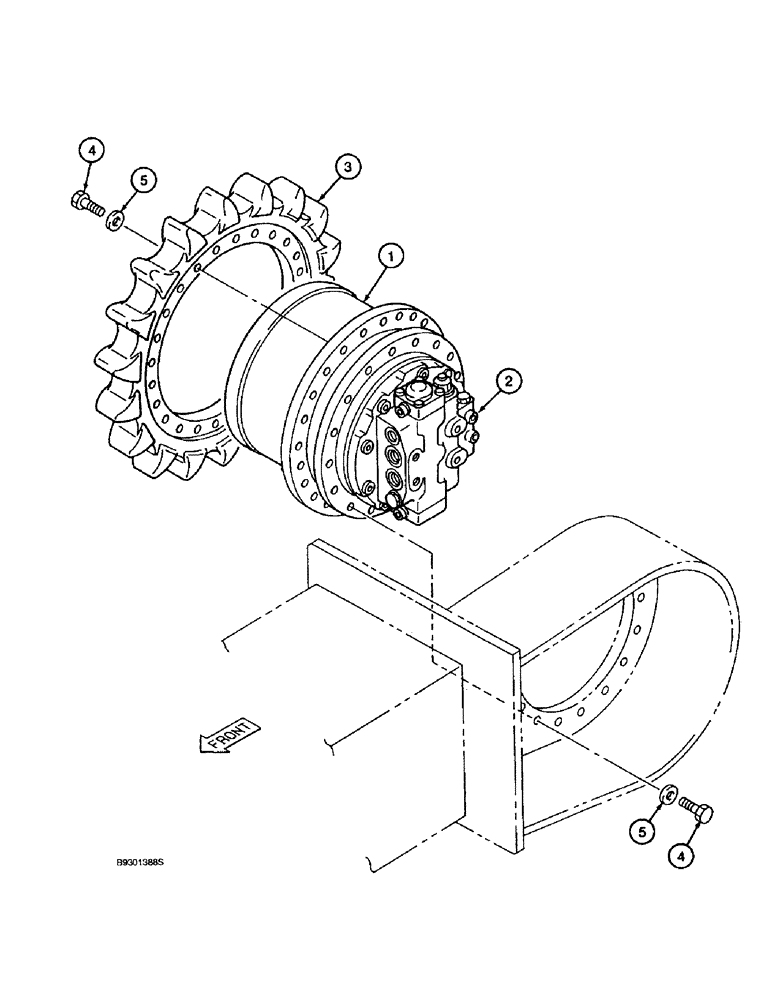

Схема запчастей Case 9010 - (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN
2
5
4
3
5
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

151018A1

MOTOR

ASSEMBLY track drive with transmission, Includes: Ref. 1 and 2

2шт.

1

156887A1

REDUCER

TRANSMISSION ASSEMBLY without track drive motor, parts list Figure 6-4

1шт.

2

NSS

NOT SOLD SEPARAT

MOTOR ASSEMBLY track drive, parts list Figure 6-8 and 6-92

1шт.

3

150866A1

WHEEL GEAR

SPROCKET track drive

2шт.

4

626-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

62шт.

5

150991A1

WASHER

flat, special 16 mm

62шт.
